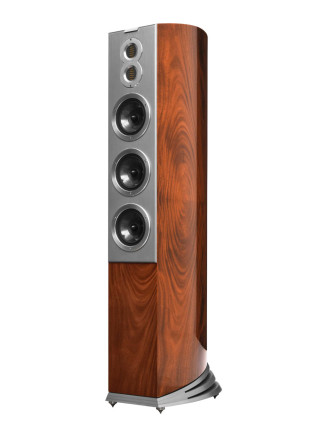

Audiovector R 10

Själva sinnebilden av handgjord dansk design. Själva sinnebilden av teknisk excellens. Audiovector R 10 Arreté har både en dedikerad supertweeter och ett diskantsystem med nollkomprimering, vilket ger en helt ny dimension till ljudupplevelsen i hemmet.

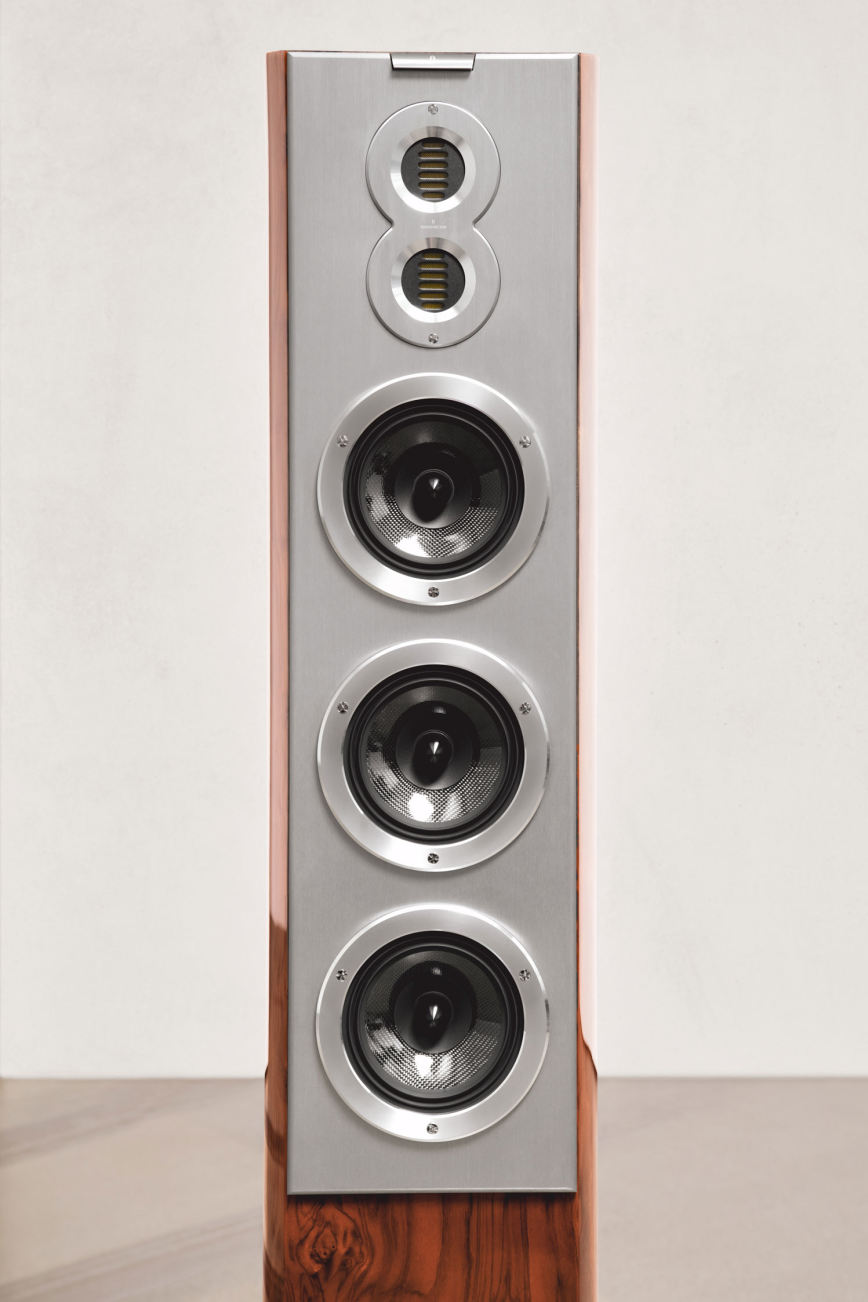

The Audiovector R 10 Arreté is a unique, one-of-its-kind loudspeaker as visually arresting as it is acoustically stunning. Each cabinet is meticulously hand-crafted from premium, high-density hardwood fibreboard, vacuum-formed and intricately braced to deliver exceptional rigidity. Precision-milled 6061 aluminium baffles provide further structural integrity to dramatically reduce vibration and distortion.

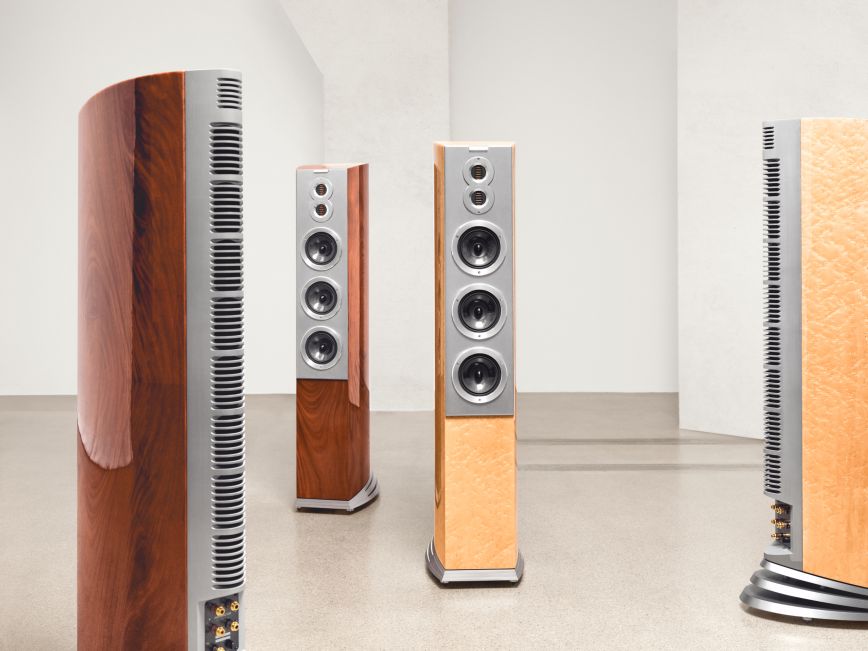

The R 10 is available in a curated selection of exquisite finishes: African Mahogany Crotch Piano, Canadian Birdseye Maple Piano, and Italian Walnut Burl Piano.

Standard Piano finishes: African Mahogany Crotch | Canadian Birdseye Maple | Italian Walnut Burl

SPECIFICATIONS R 10 ARRETÈ
FREQUENCY RESPONSE
21-53 kHz

Average Impedance
8 Ohms

Minimum Impedance
5 Ohm

Sensitivity
90 dB/W

CROSSOVER FREQUENCIES
180 Hz, 450 Hz, 3,000 Hz, 20,000 Hz

Bass Drivers
8 × 5” long-throw, low distortion

Lower mid drivers
2 × 6.5” AFC carbon sandwich

mid drivers
6.5” AFC carbon sandwich

Tweeter
3800mm2 AMT N51

Extended Tweeter
3800mm2 AMT N51

TERMINALS
High Current Nextgen Bi-Wire for 4mm plugs or spades

Dimensions
H156 × W36.5 × D62.7 cm without spikes

Weight
Approx. 95 kg per unit

Brochure.pdf R10
