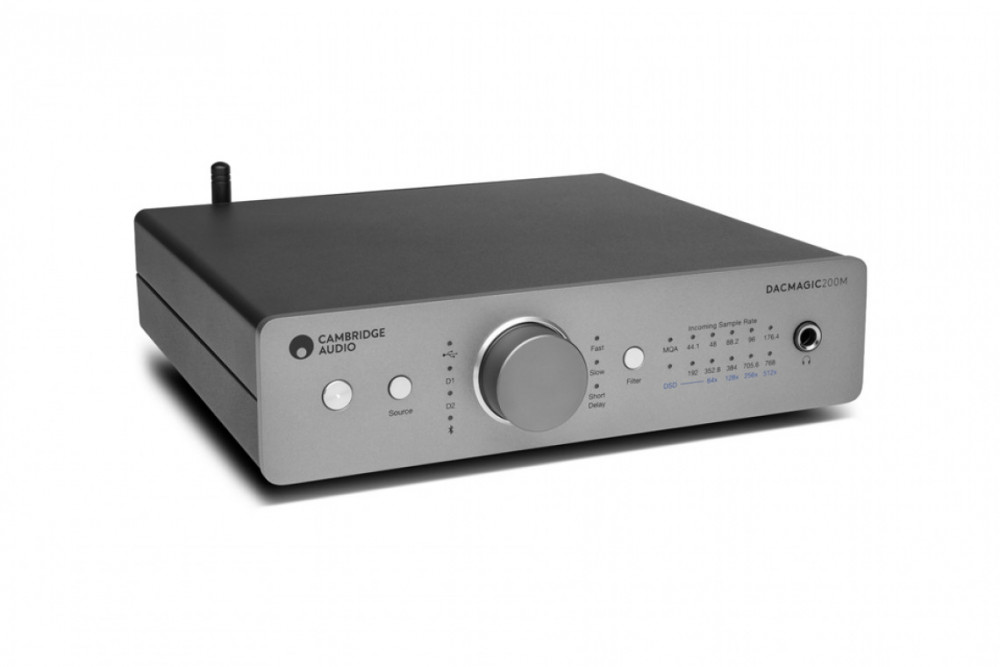

Cambridge Audio DacMagic 200
Dual ESS ES9028Q2M DACs - easily handles digital audio files up to 32bit/768kHz or DSD512
Supports MQA - be sure you're listening to artist-approved studio-quality audio
Digital optical, digital coaxial and USB inputs - connect CD players, games consoles, laptops or other digital audio sources
Built in Bluetooth aptX - send digital audio files from your smartphone or tablet wirelessly
Finished in Lunar Grey
The details
DIGITAL TO ANALOGUE CONVERTERS
Dual ESS ES9028Q2M DACs
DIGITAL FILTER
Selectable, Fast – Slow – Short delay
FREQUENCY RESPONSE
10Hz to 50kHz (±1dB)
THD+N @ 1KHZ 0DBFS
<0.0005% (A-Weighted)
SIGNAL TO NOISE RATIO
>115dB (A-Weighted)
CROSSTALK @ 10KHZ
< -110dB
OUTPUT IMPEDANCE
<50 Ohms (unbal), <100 Ohm (bal)
max. output="" level="" (unbalanced)
2.1v="" rms="" (fixed="" or="" variable="" –="" user="" selectable)
max.="" (balanced)
4.2v="" selectable)
digital="" input="" word="" widths="" supported
16bit="" (bluetooth),="" 16-24bit="" (optical,="" coaxial),="" 16-32bit="" (usb)
digital="" sampling="" frequencies="" supported
44.1khz="" to="" 96khz="" pcm,="" dop64="" (optical),="" 44.1khz="" 192khz="" (coaxial),="" 768khz="" native="" dsd="" 64x="" 512x,="" dop="" 256x="" (usb)
<="" p><="" p>=""
mqa="" compatibility
full="" decoding="" (core="" +="" renderer)
bluetooth
v4.2,="" a2dp="" profile,="" sbc="" and="" aptx="" codecs
headphone="" thd+n
<="" 0.001%="" at="" 1khz="" 0dbfs="" @="" 100mw="" into="" 32ohm
headphone="" s="" n
=""> 115dB (A-Weighted)
MAX OUTPUT POWER
>300mW @ 32ohm, >65mW @ 150ohm
FREQUENCY RESPONSE
10Hz - 50kHz (±1dB)
RECOMMEND HEADPHONE IMPEDANCE
10 Ohm to 600 Ohm
MAX POWER CONSUMPTION
12W
COLOUR
Lunar Grey
DIMENSIONS (HXWXD)
52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)
WEIGHT
1.2kg
