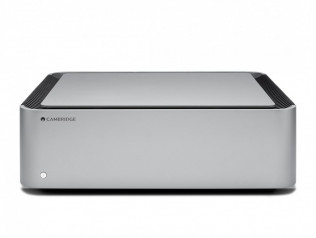

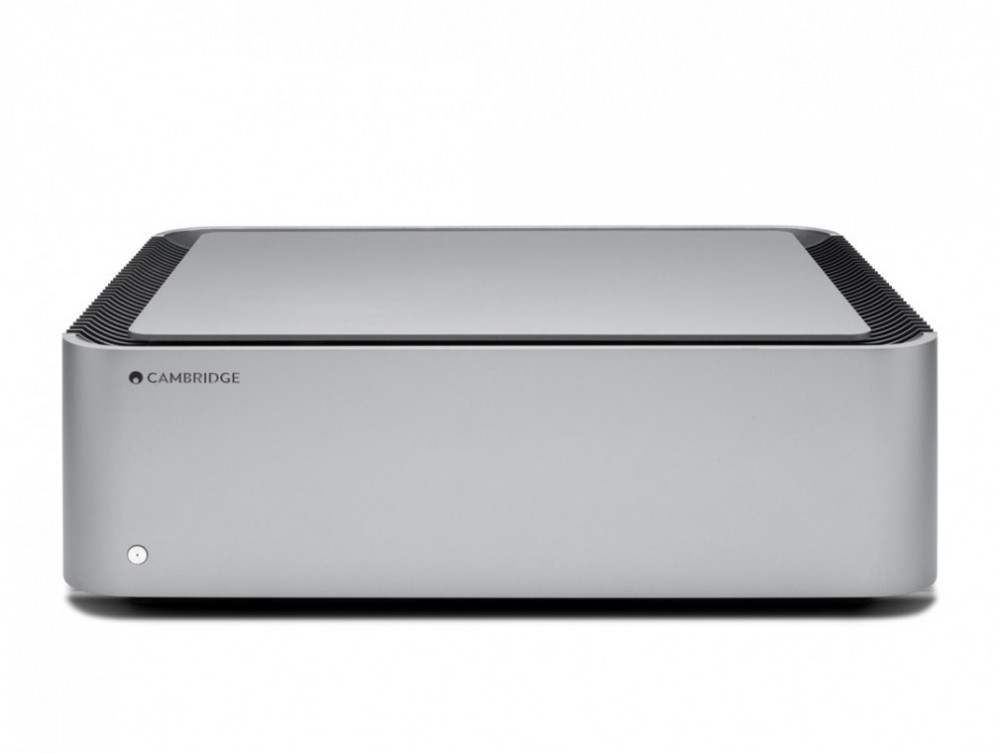

Cambridge Audio Edge W hos Lefflers Ljud & Bildupplevelser i Norrköping
The Best Power-Amplifier we Have Ever Made
Edge W is made to be played loud. When you do turn it up, expect nothing but a dynamic and punchy sound that captures all the musicality of your songs. With just 14 hand-picked components, Edge W has one of the cleanest signal paths available. It delivers our breath-taking, unadulterated British sound – nothing added, nothing taken away.Edge W - Power AmplifierHand-picked components – hours of listening to select only those that sound the best.Twin Toroidal Transformers – huge reserves of power for consistent tonality.Cambridge Audio proprietary Class XA Amplification - no audible crossover distortion.Short signal path – Only 14 components between you and your music.Perfect partners – pair your Edge W with the Edge NQ to create your perfect system.The details:CONTINUOUS POWER OUTPUT100W RMS into 8 Ohms; 200W RMS into 4 Ohms
THD (UNWEIGHTED)<0.002% 1kHz at rated power (8 Ohms); <0.02% 20Hz – 20kHz at rated power (8 Ohms)
< p="">frequency="" response<3hz="" –="" >80khz="" +="" -1db
s="" n="" ratio="" (ref="" 1w="" into="" 8="" ohm)="">93 dB
CROSSTALK @ 1KHZ< -100dB
S/N RATIO (REF FULL POWER)>113 dB
INPUT SENSITIVITYInput A1-A2 (unbalanced) 1.09V RMS
INPUT IMPEDANCESInput A3 (balanced) 47k Ohm; Input A1-A2 (unbalanced) 47k Ohm

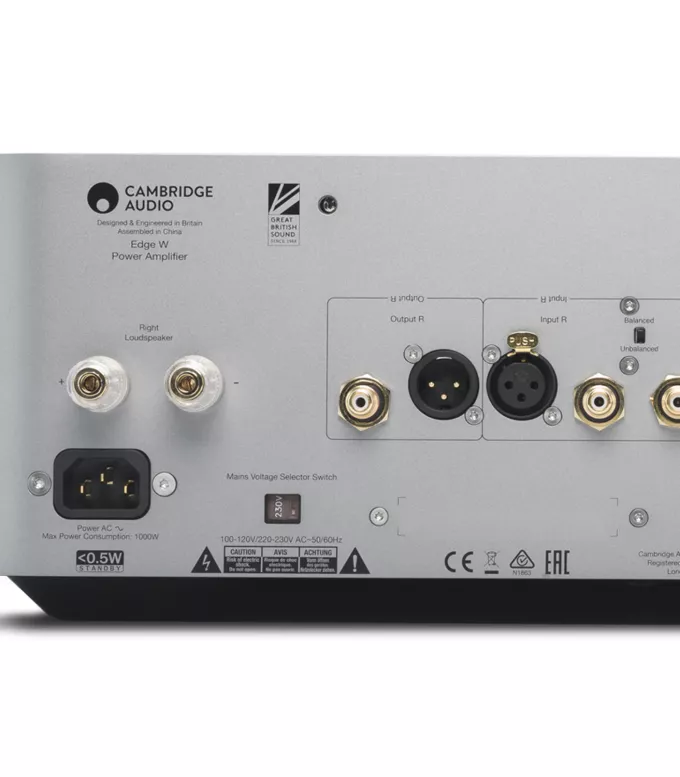

INPUTSBalanced, Unbalanced
OUTPUTSSpeakers, Loop out
MAX POWER CONSUMPTION1000W
STANDBY POWER CONSUMPTION<0.5W
DIMENSIONS150 x 460 x 405mm
WEIGHT23.6kg
IN THE BOXEdge W Power Amplifier; 1.5M Power Lead; Edge Link Cable; Edge W User Manual, Warranty Card
<>
Pure amplification, uncompromising performance
Class XA amplification
Cambridge Audio’s proprietary bias voltage system removes audible crossover distortion, delivering flawless, high-efficiency power.
Twin toroidal transformers
Opposing symmetry cancels electromagnetic interference, ensuring consistent tonality and stable power delivery at any volume.
Ultra-short signal path
With just 14 hand-picked components, Edge W ensures unparalleled purity and accuracy in sound reproduction
High-current power delivery
Effortlessly drives demanding speakers, maintaining depth, detail, and rhythmic precision.
Designed for synergy
Pair with Edge NQ to create a world-class preamp and power amp system for unrivalled performance and seamless integration.
