Chord Electronics Qutest
Qutest is a standalone DAC whose performance belies its compact dimensions. With DAC architecture based on the award-winning Hugo 2, Qutest offers class-leading digital conversion.

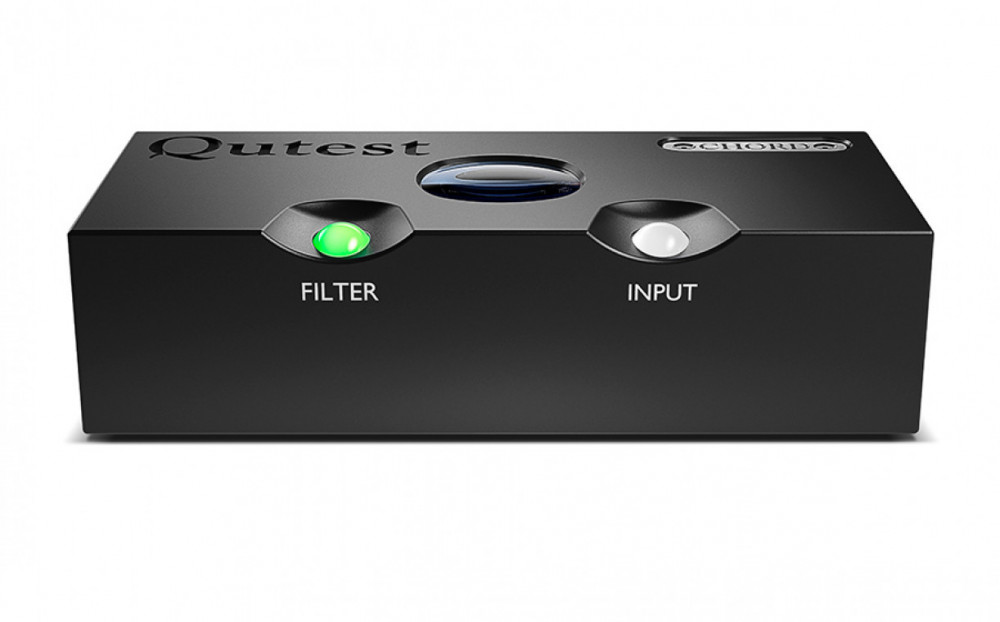

• Materials: Precision machined aluminium casing with polycarbonate buttons and glass viewing portal.
Available in black.
Device Power Supply: 5v 2amp Micro USB
Connectivity (input) - 1x USB Type B (White): 44.1kHz – 768kHz – 16bit – 32bit - 2 x BNC Coax (Red): 44.1kHz – 768kHz – 16bit – 32bit - 1 x Optical (Green): 44.1kHz – 192kHz – 16bit – 24bit
Connectivity (output) - 1 x Stereo pair of RCA (Left and Right) • PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz, 717.6kHz, and 768kHz.
DSD support: Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)
Qutest is our ‘pure’ DAC (it does not contain headphone amplification or rechargeable batteries like some of its range stablemates) and is designed to improve sound quality in the home. It is the latest evolution of our most affordable standalone DAC, the multi-award-winning 2Qute, which it directly replaces.
Qutest, which is a What Hi-Fi? Star of CES 2018, is based on our award-winning proprietary FPGA technology developed for the class-leading Hugo 2 DAC/headphone amp, giving it proven class-leading technical and sonic performance. Perfectly equipped to bring the benefits our digital technology to a wide range of connected devices, it features a galvanically isolated USB-B, optical and coaxial digital input, giving an instant performance upgrade, plus the ability to modernise ageing digital source components.
The Qutest chassis is all-new, too. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminium billet. The Qutest PCB nestles within a shallow cavity in the solid aluminium chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.
Qutest offers Hugo 2’s proprietary user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility. It also features RCA analogue outputs for connection to integrated amplifiers, preamps and headphone amps, plus high-resolution dual-data digital inputs for connection to future Chord Electronics products.
A further new feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with a wide range of partnering devices.
Variable output: Fixed, but selectable between 3v (blue), 2v (green), and 1v (red) via dual press of ‘Filter’ + ‘Input’ upon startup
Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS
Digital designer: Rob Watts
Mechanical Designer: John Franks
Country of manufacture: England
DAC Type: Custom coded FPGA design
FPGA: Xilinx Artix 7
Tap length: 49,152 taps
Elements: 10 Element Pulse Array Design
Architecture: Hugo 2
Frequency response: 20Hz - 20kHz +/- 0.2dB
Dynamic range: 124dB A-Weighted
THD: 0.0001% 1kHz 2.5v RMS 300ohms
THD (2.5v RMS ref 3v):
117dB 300ohms A-Weighted
Channel separation: 138dB at 1kHz 300ohms
Noise floor modulation: None measurable
Output impedance: 0.025 Ω
