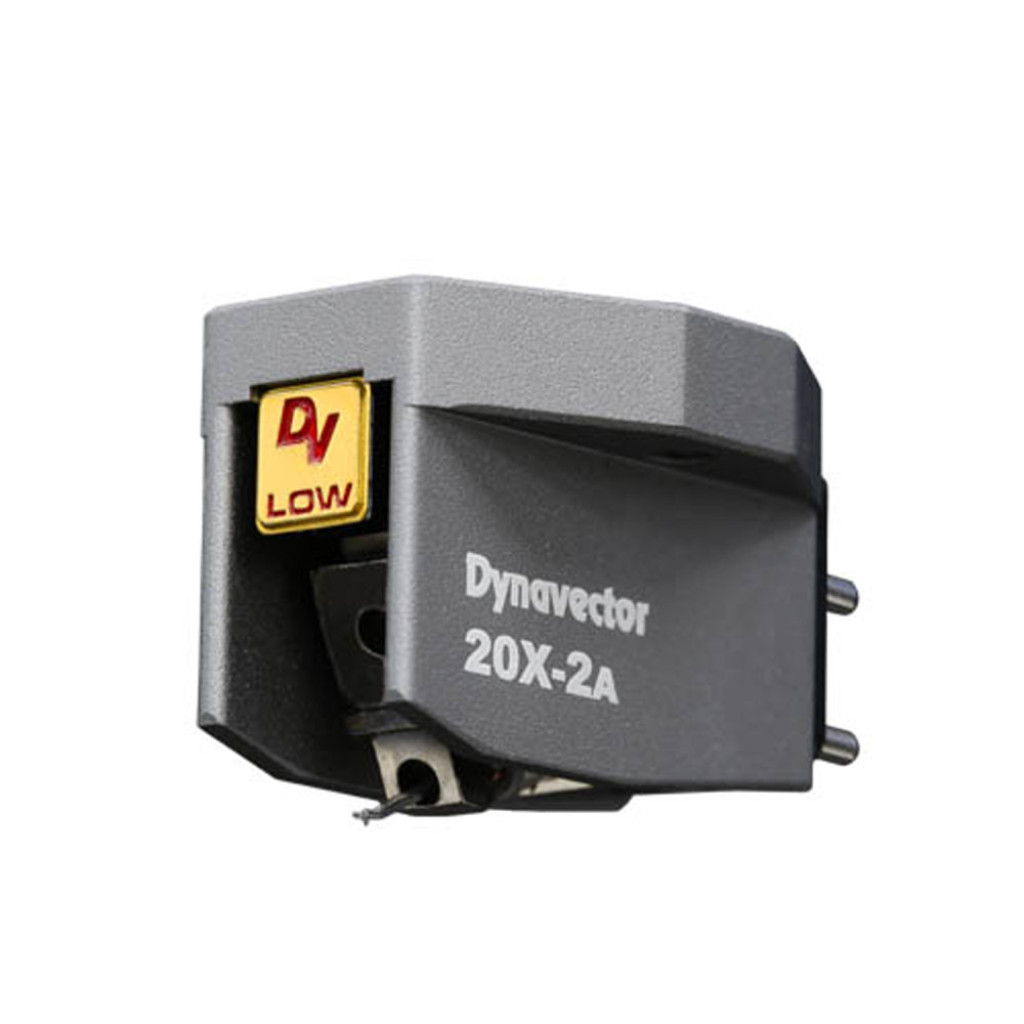

Dynavector 20X2A

DV 20X2A phono-pickupen är en grundmodell i Dynavector MC-serien. Den använder samma basstruktur som våra avancerade modeller XX-2A och Te Kaitora Rua och har en solid kropp i aluminiumlegering, hård aluminiumkonsol och en Micro-Ridge-spets.Denna DV 20X2A phono-pickup har 2 typer som du kan välja mellan beroende på ditt system.20X2A-L (modell med låg uteffekt) har utdata som en vanlig MC-pickup medan 20X2A-H (modell med hög uteffekt) är en MC-pickup som lämpar sig för de flesta MM-ingångarna.Denna pickup är idealisk för inte bara dem som vill njuta fullt ut av ljudet från en MC-pickup, utan också för dem som enkelt vill uppleva charmen med en MC-pickup utan att behöva använda en MC step up-transformator.

High Output Model / Low Output Model

The high output model 20X2A-H achieves an output voltage of 2.8mV by using Dynavectors legendary coil winding technology. By winding the coil many times with ultra-fine wire, the cartridge can obtain a high output equivalent to an MM cartridge. Thus allowing the MC cartridge to be connected to PHONO terminal for MM input without the need for a head amplifier or step-up transformer.The low output model 20X2A-L has a 0.3mV output voltage, using the same PCOCC wires as the higher-end models for the coil. The recommended load impedance of the head amplifier is 30Ω or more, making it compatible with most head amplifiers and MC step-up transformers.

Special Annealing Magnetic Circuit

The magnetic circuit, which is the core of an MC cartridge, uses pure iron that has stable magnetic properties with minimal distortion. Furthermore, by performing special annealing that focuses on optimizing the magnetic annealing process such as annealing temperature, environment, heating duration, and heating / cooling rates, we have succeeded in delivering expansive resonant sound without distortion and unrivaled resolution.

Neodymium magnets and soft magnets

The series employs a patented softened magnets developed to reduce distortion and harsh irritating edgy sounds caused by rare earth magnets while still achieving high output from powerful neodymium magnets. While taking advantage of the powerful magnetic force of neodymium magnets the cartridge achieves a clear separation of sound.

⇒ ... learn more about Flux Damping and Softened Magnetism


Hard Aluminium Pipe / Cantilever

The hollow hard aluminium pipe cantilever used, reduces the vibration system mass, achieving a wide bandwidth with clear high frequencies.

Micro-Ridge Stylus

A Micro-Ridge stylus is used for the stylus tip. Although the part that contacts the record groove has a minute radius curvature of only 2 microns, the band-like shape of the tip makes it resistant to abrasion and will provide ideal performance over a long period of

Specifications
Type
High/Low output moving coil cartridge
with flux damper and softened magnetism
Output Voltage
2.8 mV / 0.3 mV (at 1KHz, 5cm/sec.)
Channel Separation
25 dB (at 1KHz)
Channel balance
1.0 dB (at 1KHz)
Frequency response
20 - 20,000 Hz（±2dB）
Compliance
12 mm/N
Tracking force
1.8 - 2.2 g
Impedance
150 ohms / 5 ohms
Recommended load impedance
1,000 ohms / > 30 ohms
Cantilever
6mm length hard aluminium pipe
Stylus tip
Micro Ridge Nude diamond
Weight
9.2 g
