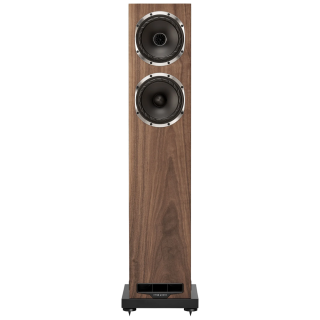

Fyne Audio F501S

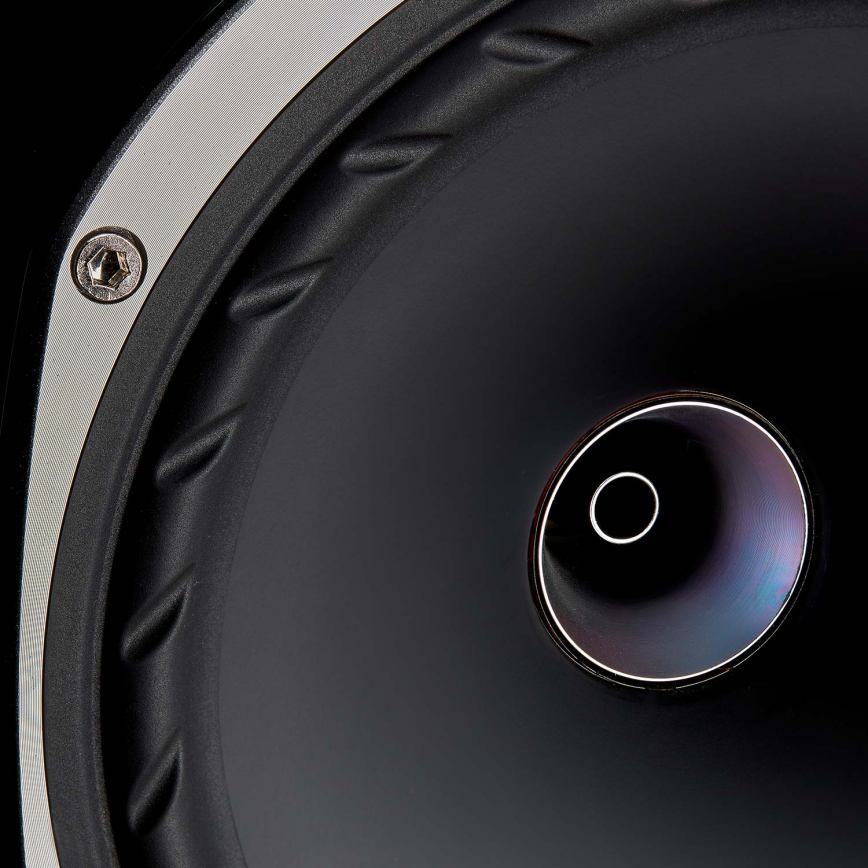

Golvhögtalaren F501S har ett 150 mm (6 tum) IsoFlare-punktkällelement med en 25 mm magnesiumdome-diskant för exceptionell klarhet och precis bildåtergivning. Kompletterat med ett dedikerat 150 mm baselement levererar den ett rikt, dynamiskt ljud med utmärkt transientrespons. Tillägget av ett integrerat patenterat BassTrax Tractrix Diffuser System säkerställer en jämn 360-graders basspridning, vilket minimerar problem med rumsplacering. F501S är tillverkad av högstyv MDF och har en finish i två lyxiga träfanér eller pianoblank svart, och kombinerar förfinad estetik med banbrytande ljudteknik till ett klassledande pris. Med en närvarokontrollbrytare för skräddarsydda mellanregisterdetaljer ger F501S rumsfyllande prestanda för både musik- och hemmabioentusiaster.
System Type
2 ½ way, downwards firing port, with BassTraxTMTractrix diffuser.
Recommended amplifier power (Watt RMS)
30 – 150
Continuous power handling (Watt RMS)
75
Sensitivity (2.83 Volt @ 1m)
90dB
Nominal impedance
8 Ohm
Frequency response (-6dB typical in room)
36Hz - 34kHz
Drive unit complement

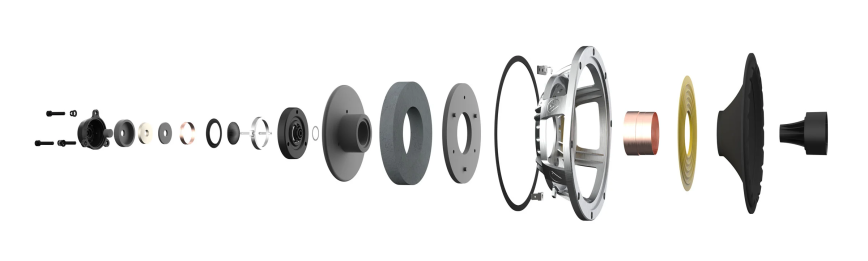

1 x 150mm IsoFlareTM, bass / mid with 25mm magnesium dome compression tweeter. 1 x 150mm bass.
Crossover frequency
250Hz & 1.7kHz
Crossover type
2nd order low pass, 1st order high pass
System adjustments
+/- 3dB (2.5 – 5.0kHz)
Dimensions - HxWxD
984 x 250 x 317mm (38.7 x 9.84 x 12.5")
Net Weight - Each
18.6kg
Finishes
Black Oak, Natural Walnut, Piano Gloss Black
Cabinet Construction

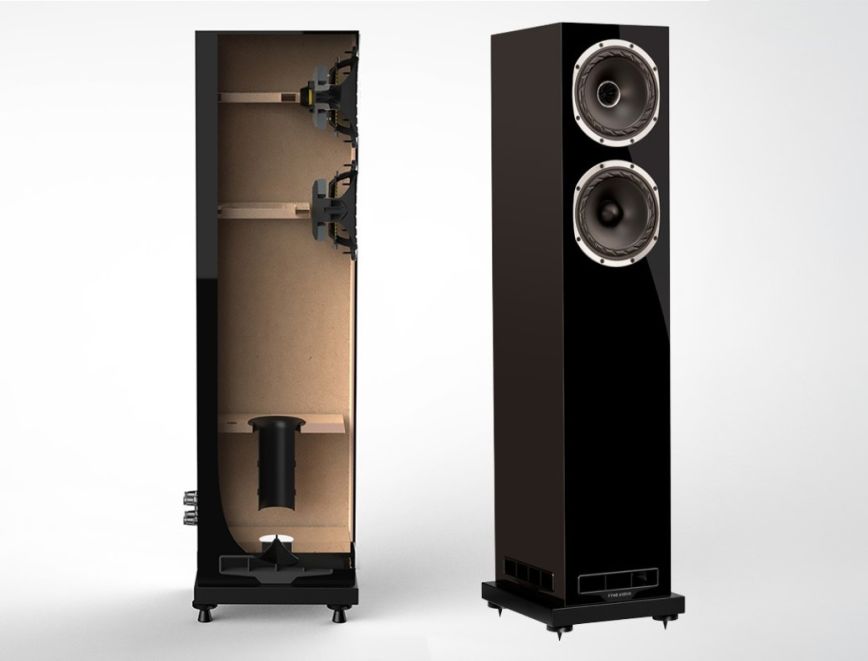

High-rigidity MDF with extensive internal bracing
BASSTRAXTM PORT SYSTEM
The patented BassTrax™ Tractrix Diffuser technology redefines bass performance. By converting downward-firing port energy into a smooth, 360-degree wavefront, it delivers rich, controlled bass that effortlessly fills any room. This clever design minimises the impact of speaker placement, ensuring consistent, immersive sound no matter where you sit. Even in acoustically challenging spaces, the BassTrax system maintains clarity and depth, avoiding the muddiness and boom often caused by traditional ported designs. The result is tight, articulate low frequencies that blend seamlessly with the midrange for a truly balanced listening experience.
CROSSOVER
The F500S Series features expertly engineered crossovers designed to deliver exceptional sound clarity and detail. Each model incorporates high-quality components, including low-loss laminated core inductors and premium polypropylene film capacitors, to ensure minimal signal degradation. These crossovers are meticulously crafted and computer-optimised, with final adjustments made by ear to achieve a perfectly balanced frequency response. This precise tuning ensures seamless integration between the bass, midrange, and treble drivers, resulting in a natural, immersive soundstage. All but the LCR models also offer bi-wire terminals, allowing for improved signal separation and enhanced audio fidelity, catering to discerning audiophiles.
HOME THEATRE
The F500S Series is as impressive with movies as it is with music. Fyne Audio’s IsoFlare™ point source driver technology excels at articulating the finest details with pin-point accuracy, bringing both soundtracks and dialogue to life. High efficiency and power handling ensure incredibly dynamic, lifelike performance whether you’re enjoying DTS Master Audio or Dolby True HD. The F500S Series offers a multitude of models to suit any space, including the LCR model, designed for flexible placement as a left, centre, or right channel speaker, which can be wall mounted or stand alone. No matter your home cinema setup, the F500S Series is sure to have your audio needs covered.
