Fyne Audio F700
Innehållet kan inte visas
Fyne Audio F700-serien är raffinerad, elegant och kraftfull och sätter nya riktmärken för HiFi-högtalarprestanda och estetisk design. Byggd i Storbritannien med Fynes innovativa punktkälla IsoFlare-element och BassTrax tractrix-diffusorsystem, destillerar F700-serien trickle-down-teknik från flaggskeppet Fyne Audio F1-serien till en mer prisvärd design för det moderna hemmet.

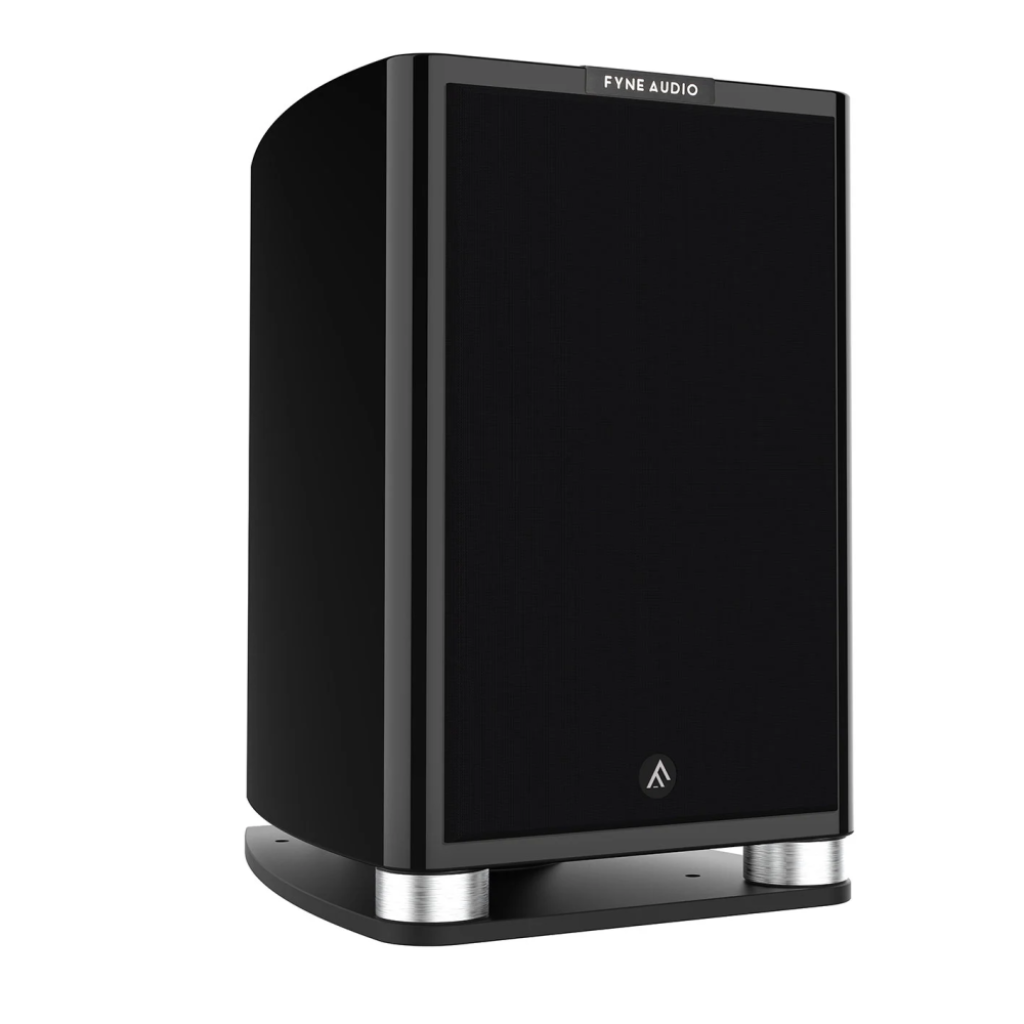

Denna eleganta, moderna bokhyllehögtalare destillerar det bästa av Fyne Audios nya teknologier och expertis i en kompakt bokhylledesign. F700 är tillverkad i Storbritannien och har trickle-down-teknik från vår flaggskeppsserie F1. Den har ett 150 mm IsoFlare-punktkällelement med en BassTrax LF-diffusor integrerad i den nedåtriktade porten. Lyxig högblank pianolack applicerad på svart, vit eller valnötsfaner är den sista touchen på F700:s handgjorda kabinett. Raffinerad, artikulerad och kraftfull återskapar F700 ett verkligt naturligt ljud i ett charmigt kompakt kabinett. Den perfekta HiFi-högtalaren för audiofiler med begränsat utrymme.
System Type
2 way, downwards firing port, with BassTrax Tractrix diffuser
Recommended amplifier power (Watt RMS)
30 - 150
Peak power handling (Watt)
300
Continuous power handling (Watt RMS)
75
Sensitivity (2.83 Volt @ 1m)
89dB
Nominal impedance
8 Ohm
Frequency response (-6dB typical in room)
40Hz - 34kHz
Drive unit complement

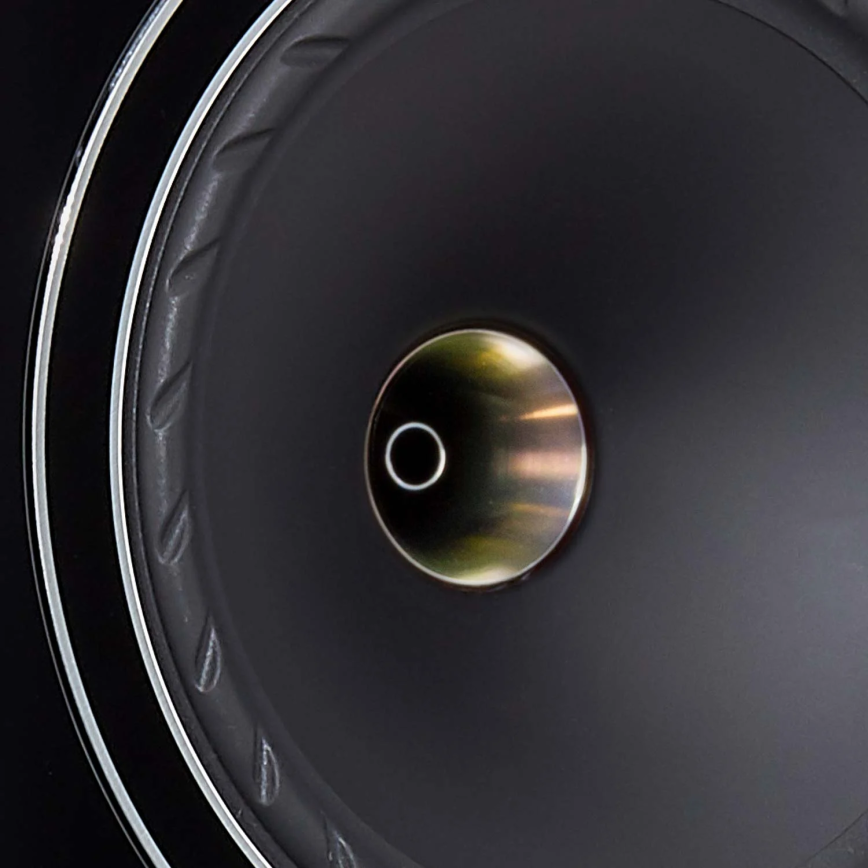

1 x 150mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm magnesium dome compression tweeter, neodymium magnet system
Crossover frequency
1.7kHz
Crossover type
Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated.
Dimensions - HxWxD
348mm x 224mm x 337mm (13.7 x 8.8 x 13.3”)
Net Weight - Each
9.0kg
Finishes
Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White
CABINET
The F700 Series’ hand crafted cabinets have a uniquely sculpted shape designed to appeal to both the ear and the eye. The curve of each panel is precisely calculated to diffuse standing waves, allowing the finest musical details to shine through, while extensive internal bracing reinforces the sonic neutrality of the enclosure. Formed from high density birch plywood, chosen for its extremely low sonic colouration, the cabinet construction features a complex, twin cavity tuning system. Each cabinet is meticulously built to exacting quality standards inside and out. Luxury, high gloss piano lacquer, available in black, white or walnut veneer, is the finishing touch to the F700 Series sumptuous aesthetic.
CROSSOVER
The F700 Series crossover is the result of sourcing the very best audio components from around the world and Fyne’s extensive experience in network design. The result is a crossover of incredible neutrality, combining low loss inductors, Claritycap high grade capacitors and Van den Hul® high purity silver plated internal wiring, enhanced by our in-house Cryo-Lite process to create the cleanest signal path possible. This super-freezing and slow thawing process relieves microstress in components wiring, maximising signal transfer and delivering greater transparency to the sound. The bi-wired terminal panel uses gold plated link cables and premium quality gold plated binding posts. A fifth terminal is provided for grounding, further preventing radio frequency interference from masking fine detail.
BASSTRAX PORT SYSTEM
Fyne Audio’s flagship BassTrax Tractrix diffuser bass porting system is integrated into all F700 models. Using a large, downfiring port with a mathematically derived tractrix profile conical diffuser creates a true 360 degree LF wavefront. The result is unrivalled bass integration in any room, offering the depth and scale of a large, ported cabinet loudspeaker without the potential bass bloom caused by typical port/room interactions. The clever design makes F700 Series far less sensitive of room position than traditional Hi-Fi loudspeakers, enabling easy in room placement for aesthetic or practical reasons.
