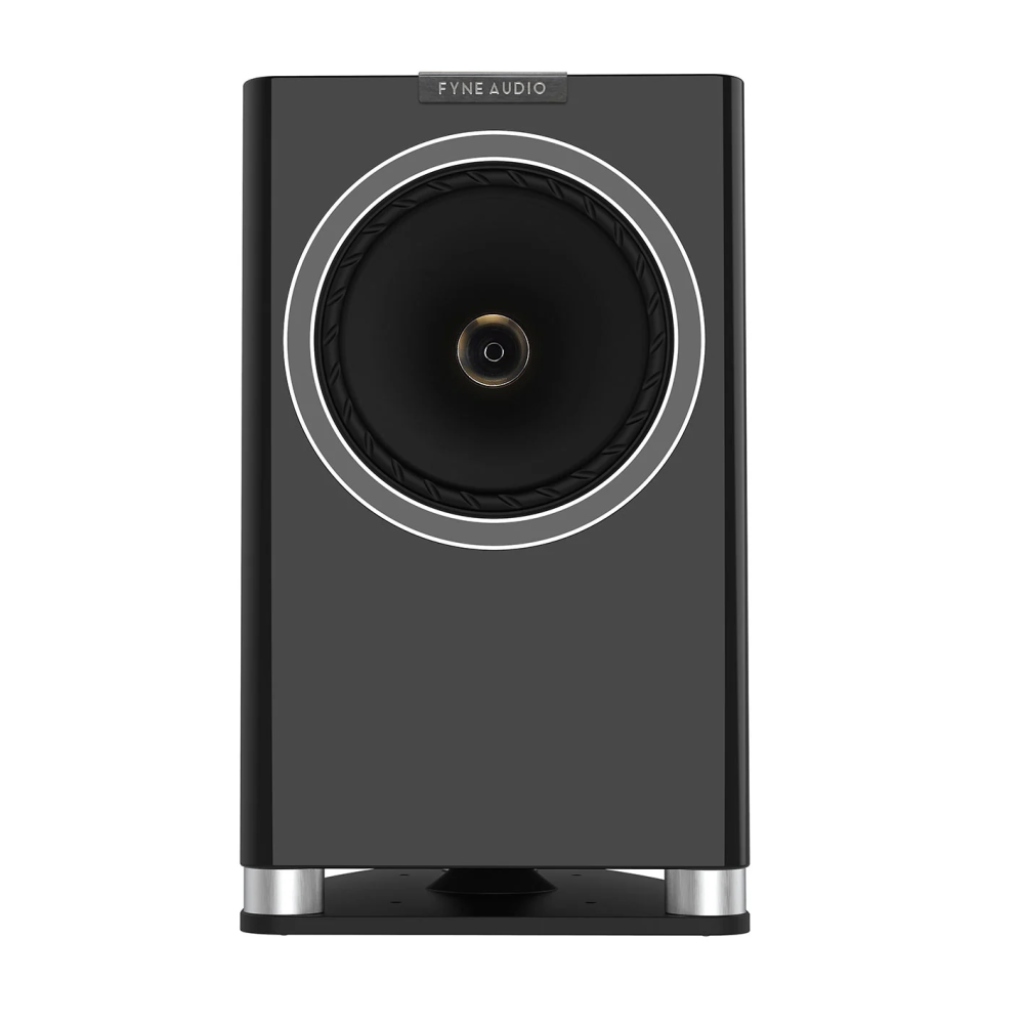

Fyne Audio F701
Med hjälp av trickle-down-teknik från F1-serien destillerar denna eleganta, moderna högtalare det bästa av Fyne Audios nya teknologier och expertis i en stativmonterad design. F701, tillverkad i Storbritannien, har ett 200 mm IsoFlare-punktkällelement med en BassTrax LF-diffusor integrerad i den nedåtriktade porten. Lyxig högblank pianolack applicerad på svart, vit eller valnötsfaner är den sista touchen till F701:s handgjorda kabinett. Kompletterad av Fyne Audios unikt utformade FS8-stativ, raffinerad, artikulerad och kraftfull, återskapar F701 en verkligt fängslande HiFi-lyssningsupplevelse i ett överdådigt stativkabinett.
System Type
2 way, downwards firing port with BassTrax Tractrix diffuser
Recommended amplifier power (Watt RMS)
30 - 180
Peak power handling (Watt)
360
Continuous power handling (Watt RMS)
90
Sensitivity (2.83 Volt @ 1m)
91dB
Nominal impedance
8 Ohm
Frequency response (-6dB typical in room)
35Hz - 34kHz
Drive unit complement
1 x 200mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute™ surround with 25mm magnesium dome compression tweeter, neodymium magnet system
Crossover frequency
1.7kHz
Crossover type
Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryo-Lite treated.
Dimensions - HxWxD
465 x 278 x 389mm (18.3 x 10.9 x 15.3”)
Net Weight - Each
13.6
Finishes
Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White
Fyne Audio F700-serien är raffinerad, elegant och kraftfull och sätter nya riktmärken för HiFi-högtalarprestanda och estetisk design. Byggd i Storbritannien med Fynes innovativa punktkälla IsoFlare-element och BassTrax tractrix-diffusorsystem, destillerar F700-serien trickle-down-teknik från flaggskeppet Fyne Audio F1-serien till en mer prisvärd design för det moderna hemmet.
CABINET

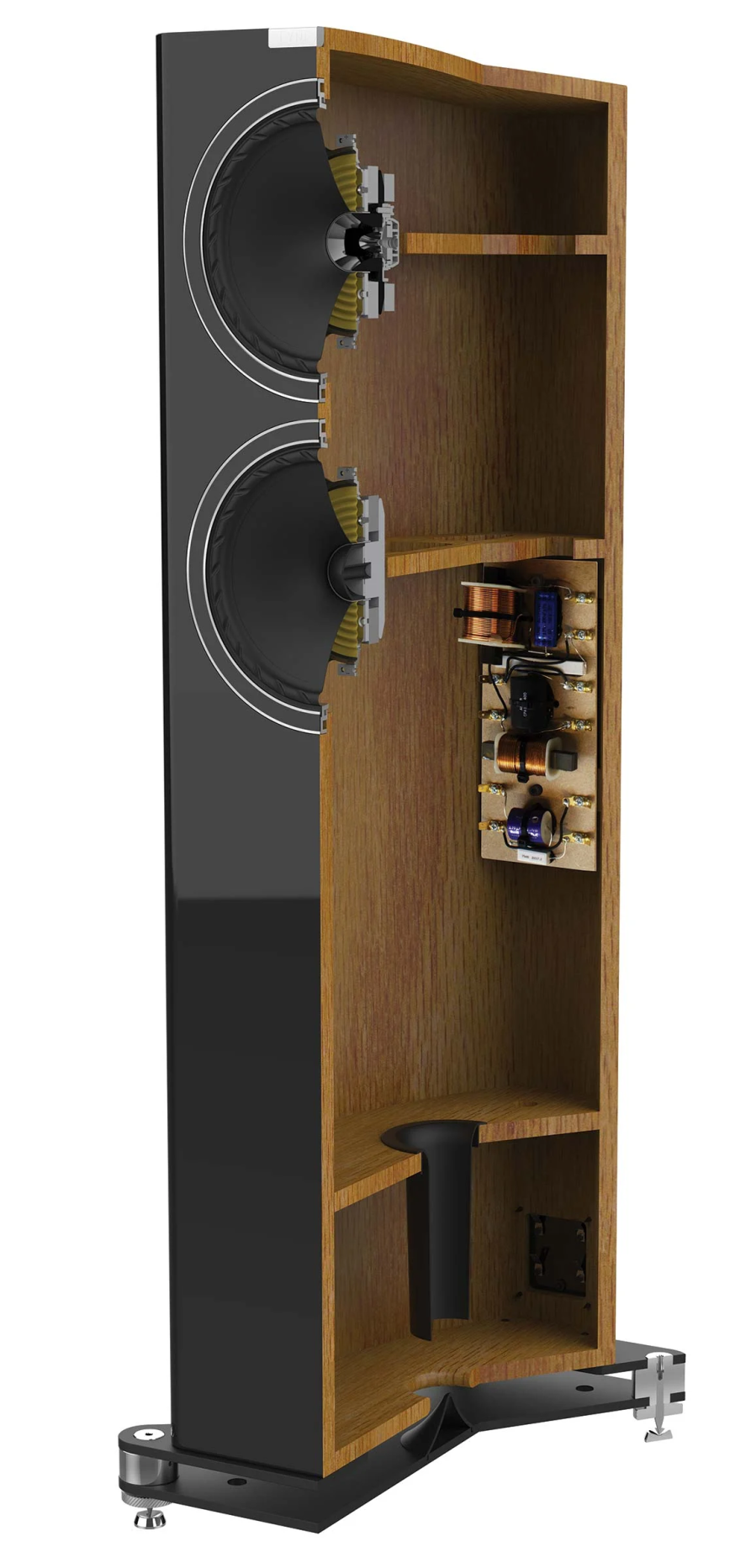

The F700 Series’ hand crafted cabinets have a uniquely sculpted shape designed to appeal to both the ear and the eye. The curve of each panel is precisely calculated to diffuse standing waves, allowing the finest musical details to shine through, while extensive internal bracing reinforces the sonic neutrality of the enclosure. Formed from high density birch plywood, chosen for its extremely low sonic colouration, the cabinet construction features a complex, twin cavity tuning system. Each cabinet is meticulously built to exacting quality standards inside and out. Luxury, high gloss piano lacquer, available in black, white or walnut veneer, is the finishing touch to the F700 Series sumptuous aesthetic.
CROSSOVER
The F700 Series crossover is the result of sourcing the very best audio components from around the world and Fyne’s extensive experience in network design. The result is a crossover of incredible neutrality, combining low loss inductors, Claritycap high grade capacitors and Van den Hul® high purity silver plated internal wiring, enhanced by our in-house Cryo-Lite process to create the cleanest signal path possible. This super-freezing and slow thawing process relieves microstress in components wiring, maximising signal transfer and delivering greater transparency to the sound. The bi-wired terminal panel uses gold plated link cables and premium quality gold plated binding posts. A fifth terminal is provided for grounding, further preventing radio frequency interference from masking fine detail.
BASSTRAX PORT SYSTEM
Fyne Audio’s flagship BassTrax Tractrix diffuser bass porting system is integrated into all F700 models. Using a large, downfiring port with a mathematically derived tractrix profile conical diffuser creates a true 360 degree LF wavefront. The result is unrivalled bass integration in any room, offering the depth and scale of a large, ported cabinet loudspeaker without the potential bass bloom caused by typical port/room interactions. The clever design makes F700 Series far less sensitive of room position than traditional Hi-Fi loudspeakers, enabling easy in room placement for aesthetic or practical reasons.
DRIVER TECHNOLOGY
IsoFlare point source drivers are at the heart of every F700 model. Benefitting from Fyne’s Flagship F1 Series technology, the IsoFlare units feature a 25mm magnesium diaphragm compression tweeter mounted coaxially into the heart of a potent MF/LF driver featuring a rigid multi-fibre cone and FyneFlute roll surround.
The high powered compression HF drivers give true point source isotropic radiation for unsurpassed imaging and even frequency response. Neodymium motors with vented rear chambers and a metal pole piece to transfer heat and ensure outstanding power handling. Direct output from the diaphragm has been expertly tuned with an HF waveguide with unique geometry that proved an incredibly flat frequency response to over 30kHz.
The IsoFlare’s bass/midrange section and the auxiliary drivers in the floorstanding models, use Fyne’s proprietary multi-fibre cone with its extremely natural sounding midrange and fast transient attack. The unique FyneFlute roll surround is shaped to more effectively terminate cone energy, eliminating unwanted resonances from colouring bass and midrange micro-detail. The massive motor assembly includes a flux focusing magnet for increased LF sensitivity, resulting in a driver that can comfortably deliver the dynamics of high energy instruments.
High power handling and high efficiency are hallmarks of the IsoFlare point source design. The F700 Series’ potent 200mm and 250mm IsoFlare drivers comfortably deliver on the promise of live music dynamics and real world sound pressure levels across the range.
