Goldring E1

The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series are designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of our Magnetic Duplex Technology and Goldring Expert Adjustment.

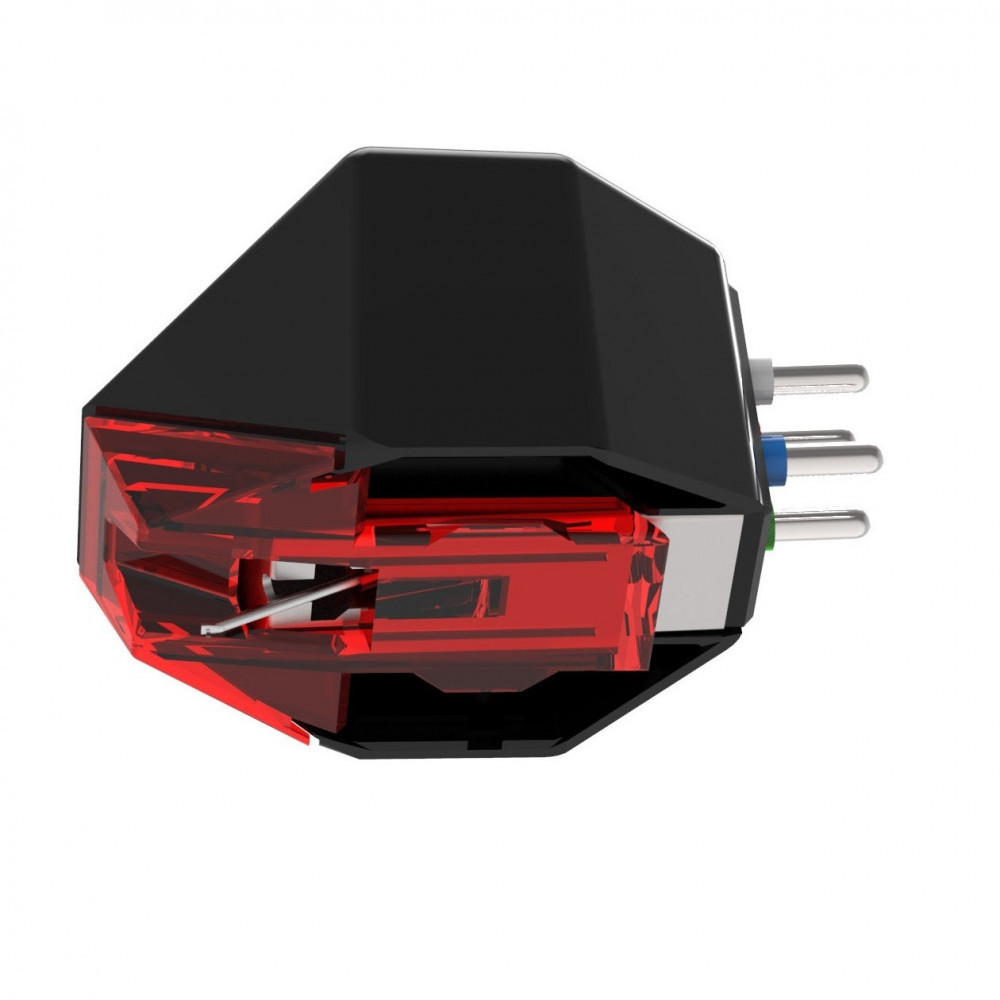

The E1 cartridge, the first in the range, utilises a carbon fibre reinforced cantilever with a bonded, spherical (0.6 mil) stylus with a round shank. Carbon is an effective alternative to more premium aluminium or boron materials, producing comparable results in most entry level hi-fi applications.

Specification

Colour Red
Cantilever Carbon
Stylus profile Spherical
Stylus radius 0.6 mil
Transducer

Characteristics
Frequency range 20 Hz - 20 kHz
Channel balance 1.5 dB at 1 kHz
Channel separation >20 dB at 1 kHz
Sensitivity 3.5 mV (1 kHz @ 5 cm/sec)
Static compliance 20 mm/N
Vertical tracking angle 208
Electrical Characteristics
Load resistance 47 kOhm
Load capacitance 100 - 200 pF
Internal inductance 400 mH
Internal resistance 410 Ohm
Mechanical Characteristics
Cartridge mass 6.9 g
Fixing centres 12.7 mm (0.5 in)
Playing weight 1.5 g - 2.5 g (2.0 g recommended)
