Isotek EVO3 Nova EVO3 Nova Silver

Isotek EVO3 Nova

88 990 kr

88 990 kr Beställningsvara
88 990 kr Beställningsvara
Beställningsvara (5-7 dagar för varor som finns i lager hos leverantören)
Fri frakt!

Fler bilder

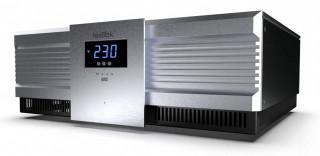

Isotek EVO3 Nova hos Lefflers Ljud & Bildupplevelser i Norrköping

Monouppbyggd filterteknik och integrerad synkroniseringseffekt av Sinuskurvan som bland annat eliminerar likström på nätet.

Extrem prestanda och funktionalitet återspeglas i Select serien. Dessa filterna har en mycket sofistikerad filtrering till
de lite mer påkostade systemen där kraven på ren ström är högre än snittet. Premierkabel ingår alltid till dessa filter.

Antal Uttag: 8+4
Åtta Medium Power Uttag
Fyra High Power Uttag
Eliminerar DC
IEC: C20

Överslagsskydd: 216.000A


The EVO3 Nova is a state of the art passive power cleaning system incorporating full DC cancellation. It is ideal for large scale audio systems or home theatre installations. The system offers twelve independently filtered power outlets, eight rated at 10A for source components and four rated at 16A. These are designed for high current electronics, for example power amplifiers, active loudspeakers or subwoofers. They also feature a slightly pared down version of the Titan’s unique Direct-Coupled© circuit. Nova is a full system solution incorporating twelve independent power cleaning networks.
FEATURES
Suitable for all audio or AV systems
RFI reduction 80dB
12 optimised power cleaning circuits Removes Common and Differential Mode mains noise
8 independent outlets for source components
4 independent high current outlets for power amps, subwoofers, active speakers etc..
DC cancellation through sine wave rebalance
216,000A instantaneous protection
Fully star-earthed network
Solid core Ohno Continuous Cast copper silver-plated internal wiring with FEP virtual air dielectric
Supplied with IsoTek’s award winning EVO3 PREMIER POWER CABLE

UK, EU, US, AU & CH outlets available

DESIGN
EVO3 Nova is a twelve-way full system mains power cleaning solution comprising four high-current outlets, featuring IsoTek’s unique Direct-Coupled© technology, a system capable of delivering 3,680W of continuous power, ideal for power amplifiers, mono-block amplifiers, subwoofers and active loudspeakers. This circuit provides optimal high-current low impedance filtering while fully maintaining transient and dynamic performance.
The EVO3 Nova is an innovative component with a power cleaning and distribution system measuring 445mm in width, 370mm deep and 185mm high. It is a significant step up from both the Aquarius and Sigmas models. Nova really is a full scale power cleaning system incorporating twelve power cleaners in one box all output sockets are independent, each one with its own dedicated power cleaning network; these dramatically reduce both Differential Mode and Common Mode noise. Cross contamination of connected components is also kept to a minimum due to the multiple power cleaning stages for each output socket. Most power filters join output sockets together, running each in series. This is an error as Differential Mode Noise created by your connected electronics will cross contaminate from one output socket to the next. The electrical architecture and design of Nova is dramatically superior.
There are four high current low impedance outlets, rated at 16A, delivering 3,680W at 230V or 1,840W at 115V, these are suitable for power amplifiers, active loudspeakers or sub woofers and feature a light version of the Titan’s Direct Coupled© circuit. The eight remaining medium current outputs rated at 10A are designed for source components. These feature IsoTek’s unique Adaptive Gating© technology that autosenses the connected load, thus giving the ideal optimal clean power based upon power draw. The power cleaning network is more sophisticated than that of Aquarius or Sigmas models. Nova is ideal for large scale audio or audio-visual installations.
KERP © (Kirchoff’s Equal Resistance Path) ensures equal resistance and equal power delivery to all outlets. The internal wiring is of the highest standard; ultra pure Ohno Continuous Cast copper solid core conductor strands with silver-plating offers low resistance and high amperage. A Fluorinated Ethylene Propylene (FEP) helix is wound around the conductor before an extruded FEP dielectric protects the conductor and creates a Virtual Dielectric of Air (VDA). This construction gives unrivalled performance and gives the ultimate low resistance, high performance internal power delivery system. Furthermore, 108,000A of instantaneous protection is provided, safeguarding valuable equipment via IsoTek’s unique sequential and repeatable protection system.
Also built into the Nova, is the Syncro unique DC-cancelling circuit that rebalances the mains sine wave on the zero volts line, to dramatically reduce/silence transformer hum; the circuit synchronizes the mains supply to provide a perfectly symmetrical sine wave, which also delivers significant sonic improvement when used with any hi-fi separates.
Nova is high quality design, highly functional and an excellent upgrade for a complete high-end audio or audio video system improving sound stage, three dimensional imaging, bass articulation, control and a sense of extended frequency range and openness. IsoTek’s award winning Premier power cable is also included.
The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.

SPECIFICATIONS
NUMBER OF OUTLETS
12
TYPE OF OUTLETS
UK, EU, US, AU & CH
DISPLAY
Voltage / THD / off
MAINS INLET
16A IEC C20
MAINS VOLTAGE
100-240V / 50-60Hz
MEDIUM CURRENT - 230V
x8 (10A 2,300W total)
MEDIUM CURRENT - 115V
x8 (10A 1,150W total)
HIGH CURRENT - 230V
x4 (16A 3,680W total)
HIGH CURRENT - 115V
x4 (16A 1,840W total)
SURGE PROTECTION
108,000A
DIMENSIONS (W X H X D)
440 x 160 x 370mm
WEIGHT
15Kg
