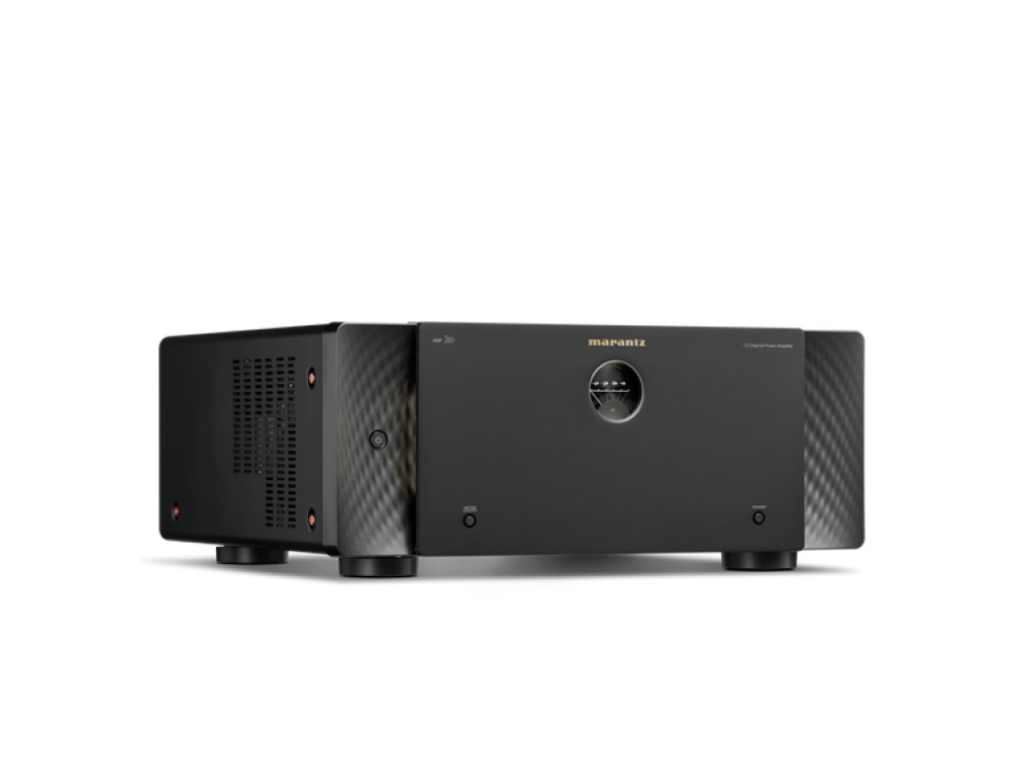

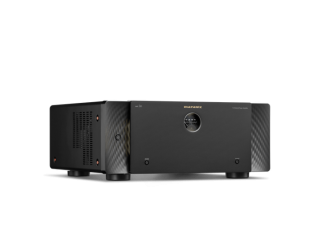

Marantz AMP 20

Crafted in Shirakawa, Japan
12 Channels
200 Watts per Channel
Exclusive HDAM
Custom Switching Amplifiers
Selectable Output Modes

AMP 20 är en kraftfull 12-kanalsförstärkare och kan paras ihop med AV 20 för ett hemmabiosystem av toppklass.

Ultimate Performance

AMP 20 combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance. When paired with AV 20, the results are unforgettable.

AMP 20
Ultimate Performance
AMP 20’s custom-developed Class D amplification and refined HDAM-SA2 technology create the most incredible theatrical experience possible in your home.

Our Marantz Sound Master meticulously tuned AMP 20 for amazing performance with careful parts selection to create outstanding sound in your home.

AMP 20 gives you 12 channels of commanding power in a single enclosure, each rated at 200 watts to perform at extraordinarily high levels with no loss in fidelity.

Inputs Outputs
Main Amplifier in
Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
Speaker Terminal
SPKT-1+
Number of Speaker Terminals
12
Bi-Amp Drive /BTL Drive
Yes / Yes
Level Meter
Yes
Chassis
Copper Plated
Multi-Room CI
RS232 Control
Yes
IR Flasher In
Yes
Marantz Remote Bus
Yes
DC Trigger Input/ Output
1 / 1
Specifications
Number of poweramps
12
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL
200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal
400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal
200W
General
Front Display
Level Meter
Auto Power Off
Yes
Metal Front Panel
Yes
Power Consumption
400W
Power Consumption, No-Sound
110W
Standby Consumption
0.2W
Maximum Dimensions (W × D × H)
17.4 × 17.4 × 7.5 in.
Weight
39.7 lbs
What's in the box
Main unit, quick start guide,
AC cord,Amp control cable,
Remote control cable,
SP terminal wrench
UPC code
747192143930
