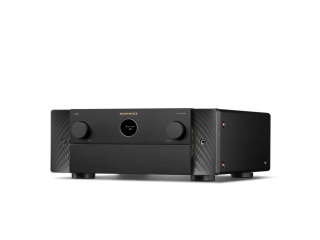

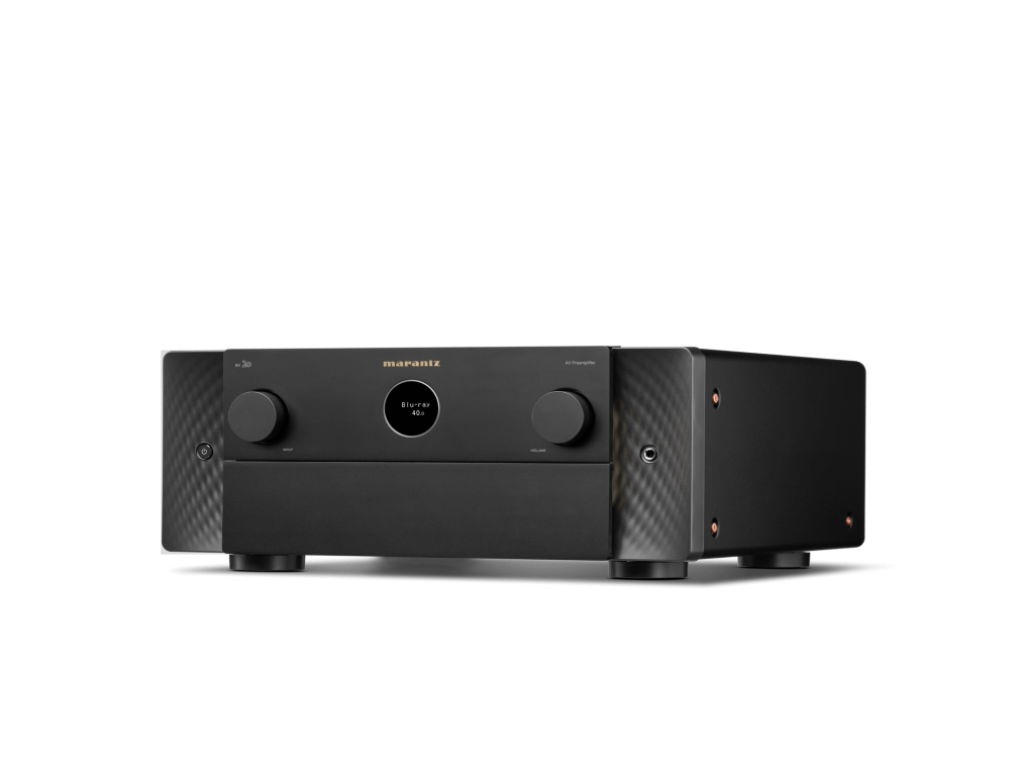

Marantz AV 20

Meticulously crafted with authentic materials
13.4 Channels
7 HDMI Inputs plus eARC
8K and Dolby Atmos
3D Audio
HEOS Built-In

AV 20 representerar det högsta måttet på prestanda och kapacitet för hemmabiosystem på referensnivå. Denna referens 13.4-kanals balanserade AV-förförstärkare har Marantz HDAM-kretsar och sju HDMI-ingångar, som alla är 8K UHD-kompatibla.

Multichannel Surround
DTS
DTS-HD, DTS:X, DTS:X Pro,
DTS Virtual:X, DTS Neural:X (13ch)
Dolby
Dolby TrueHD, Dolby Atmos,
Dolby Atmos Height Virtualization,
Dolby Atmos Music, Dolby Surround
IMAX
IMAX Enhanced
Auro 3D / 360 Reality Audio / MPEG H
Yes / Yes / Yes
Multichannel Stereo
Yes
Max Number of Processing (Pre-amp) Channels
13.4
Sound Enhancements
Copper-Plated Chassis / Toroidial Power Transformer
Yes / Yes
Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM)
Yes / Yes (SA3, monolithic)
Pure Direct / Gold-Plated RCA Terminals
Yes / Yes
Clock Jitter Reducer
Yes
Dirac Live upgradability
Yes
Compressed Audio Enhancer: MDAX2
Yes
Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC
Yes / Yes / Yes
Audyssey
MultEQ XT32
Network
Wi-Fi / Bluetooth / Ethernet
Yes / Yes / Yes
HEOS Multi-Room and Streaming
Yes
Bluetooth Retransmit for Bluetooth Headphones
Yes
Apple HomePod
Yes
Lossy formats
MP3, WMA, AAC
Lossless formats
FLAC, FLAC HD 192/24,
ALAC, ALAC 192/24,
WAV, WAV 192/24
DSD Audio Streaming
Yes (2.8/5.6MHz)
Gapless Playback
FLAC, ALAC, WAV, DSD
TuneIn / AirPlay 2 / Spotify
Yes / Yes / Yes
Roon-Ready
Yes
Other Streaming Services*
Amazon Music / TIDAL /
Deezer / Napster / Soundcloud
Compatible with Remote App for Smartphones
Marantz AVR Remote
Compatible with Remote App for Tablets
Android / iOS / Amazon Kindle
HDMI
Total HDMI Inputs
7 (rear)
HDCP2.3 Support
Yes
HDMI Outputs: Main / Zone
2 / 1
HDMI Scaling
1080P/4K to 8K
GUI Overlay on HDMI
Yes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB
Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out
7 / 2 (up to 40Gbps)
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
Yes / Yes / Yes / Yes / Yes
Enhanced ARC
Yes
ALLM (Auto Low Latency Mode) Pass-Through for Gaming
Yes
Variable Refresh Rate / Quick Frame Transport
Yes / Yes
HDMI Pass-Though in Standby Mode
Yes
DSD Audio Capability
Yes
Auto LipSync
Yes
Inputs Outputs
Composite In / Out
2 / 0
Component In / Out
1 / 0
HDMI In / Out
7 / 3
Multi-Room Video Out: Video / HDMI
No / Yes
Analogue In
6 (1x XLR)
Phono (MM) In
Yes
Digital In: Optical / Coaxial
2 / 2
Multi-Room Out: analog / digital
2 / 0
Multichannel Pre-Amp Out
Yes (15.4 RCA, 15.4 XLR)
Subwoofer Out
4 (independent) RCA, XLR
Speaker A / B
assignable pre out
Bi-amp drive
assignable pre out
Front USB Input / USB Audio
Yes / Yes
USB Power Supply (Rear)
Yes
AM/FM Tuner
Yes
Multi-Room CI
HEOS Multi-Room Integrated
Yes
HEOS Link Compatibility: IR/ IP
Yes / Yes
Multi-Room Zones
3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue
Yes (2 ch) / Yes (2 ch) / Yes / Yes
Zone Audio Output: Speaker / Pre-Out
No / Yes
Zone HDMI Output from HDMI Source
Yes
IP Control / RS232 Control / Web Control / App Control
Yes / Yes / Yes / Yes
IR Flasher In / Marantz Remote Bus
Yes / Yes
DC Trigger Output
3
HDMI Diagnostics
Yes
Others
Auto Speaker Setup by Microphone
Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display
2-Line FLD, Port Hole OLED
Graphic User Interface - GUI
Modern HD GUI
GUI Languages
3
Setup Assistant / Smart Select
Yes / Yes
Firmware Update by Network / USB
Yes / Yes
Variable Cross Over / Optimized Bass Redirection / Bass Sync
Yes / Yes / Yes
Auto Power Off / Sleep Timer
Yes / Yes
General
Metal Front Panel
Yes
System Remote Control
RC051SR
Backlit
Yes
Power Consumption
90 W
Standby Consumption
0.2 W
CEC Standby Consumption in W
0.5 W
Network Standby Consumption
<2.0 W
Maximum Dimensions
Antenna:Horizontal:(W x D x H)
Antenna:Vertical :(W x D x H)
W/o Antenna:(W x D x H)

17.4 × 18.0 × 7.5 in.
17.4 × 18.0 × 10.0 in.
17.4 × 17.2 × 7.5 in.
Weight
33.1 lbs.
What's in the box
Main unit, remote control,
batteries, AM/FM antennas,
wire labels, quick start guide,
Audyssey microphone, card
board microphone stand,
2 External Detachable Antenna,
AC cord
UPC Code
747192143848

Full spec Marantz AV 20
