Crafted in Shirakawa, Japan
8 Channels
100 Watts per Channel
Four Zones
Dolby Digital
HEOS Built-in
MODEL M4 är en rackmonterbar distributionsförstärkare med fyra zoner som är konstruerad för att erbjuda fantastiskt Marantz-ljud från ett brett utbud av strömmade musiktjänster, lokalt anslutna musikkällor och din TV.
Distribution Done Differently

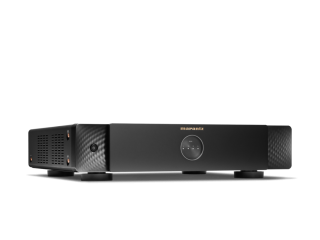

MODEL M4 offers an innovative and intelligent take on traditional distribution amplifier designs. A rack-mountable distribution amplifier for dedicated music lovers, it delivers superior sound from a wide range of streamed music services, locally connected music sources, and your TV (via the Optical inputs). MODEL M4’s industrial design complements the latest generation of Marantz hi-fi and AVR products. It has been carefully engineered to deliver the extreme robustness, simple control functionality, and flexible configuration that is essential to successful home integration.
Power Where You Need It
MODEL M4 delivers enough power to drive speakers across four rooms in your home. For even more power, use Bridge Mode which offers up to 4 x 200W of output.
Any Sound, Anywhere
Fully Featured, Fully Flexible
Engineered for High Resolution
Marantz Musical Digital Filtering
MODEL M1
MODEL M1 is a wireless streaming amplifier engineered with performance and versatility in mind. Enjoy your favorite music or TV shows with seamless connectivity from one elegant, compact device.
For the Soundtrack of Your Life
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
Learn More
Search for Songs Across Platforms
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
Your Whole Home in One Place
HEOS-enabled devices allow you to control multiple rooms, all with the HEOS app.
Hi-Resolution Streaming
Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.
Amplifier
Power Amplifier Rated output & THD (8 ohm)8 X 100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
Power Amplifier Rated output & THD (4ohm)8 X 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%
Frequency Response20 Hz to 20 kHz : ±1 dB
Connected loudspeaker Impedance4 – 16 Ω/ohms
Audio Inputs / Outputs
Loudspeaker Binding Posts4-way binding posts
Digital InputsTOSLINK (2)
Analog InputsRCA L/R (4)
PreoutsRCA L/R (4)
Subwoofer OutRCA Mono (4) (selectable)
Inputs Audio Options
Channel AssignmentsStereo (Default), Dual Mono
Volume Limit80-100%
Balance-15dB to +15dB
Adjustable High Pass / Low Pass Filters40-250 Hz / 40-120 Hz
EQBass, Treble -5dB to +5dB
Sound ModesStereo, Direct, Virtual, Dialog Enhancer, Night Mode
TV Sound GroupingYes
Audio Format Support
DecodingDolby Digital, LPCM, DSD
Stereo PCM / Multi-channel PCMYes / Yes
Stereo File Formats (HEOS network share or USB)WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
Bluetooth ReceiveN/A
Bluetooth TrasmitN/A
AirPlayAirPlay 2
SpotifySpotify Connect
Music Services and Sources
Music Services Supported ((HEOS®, subject to change and local availability)Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
Music stored on mobile deviceYes (iOS, Android or Kindle Fire)
NAS (Network Attached Storage)Network share
USB Storage Device PlaybackYes (4) (FAT32, NTFS formatted drives)
Networking & Control
Wired ConnectivityEthernet (2)
Wireless ConnectivityN/A
IR InputN/A
IR LearningN/A
Control System Compatibility via TCP/IPCreston, Control4, AMX
HEOS® AppiOS, Android, Kindle Fire
Trigger Output DC 12VYes (4)
General
Product ColorBlack
User InterfaceReset button, Front power button, Rear power switch
Dimensions (W x D x H) Inches16.34 x 4.17 x 17.4
Dimensions (W x D x H) mm415 x 106 x 442
