Oehlbach Digi Bridge

950 kr
Lägg i varukorgen
Mer produktinformation
Lagervara (Skickas inom 1-2 arbetsdagar)
Fri frakt!
Garanti i 24 månader

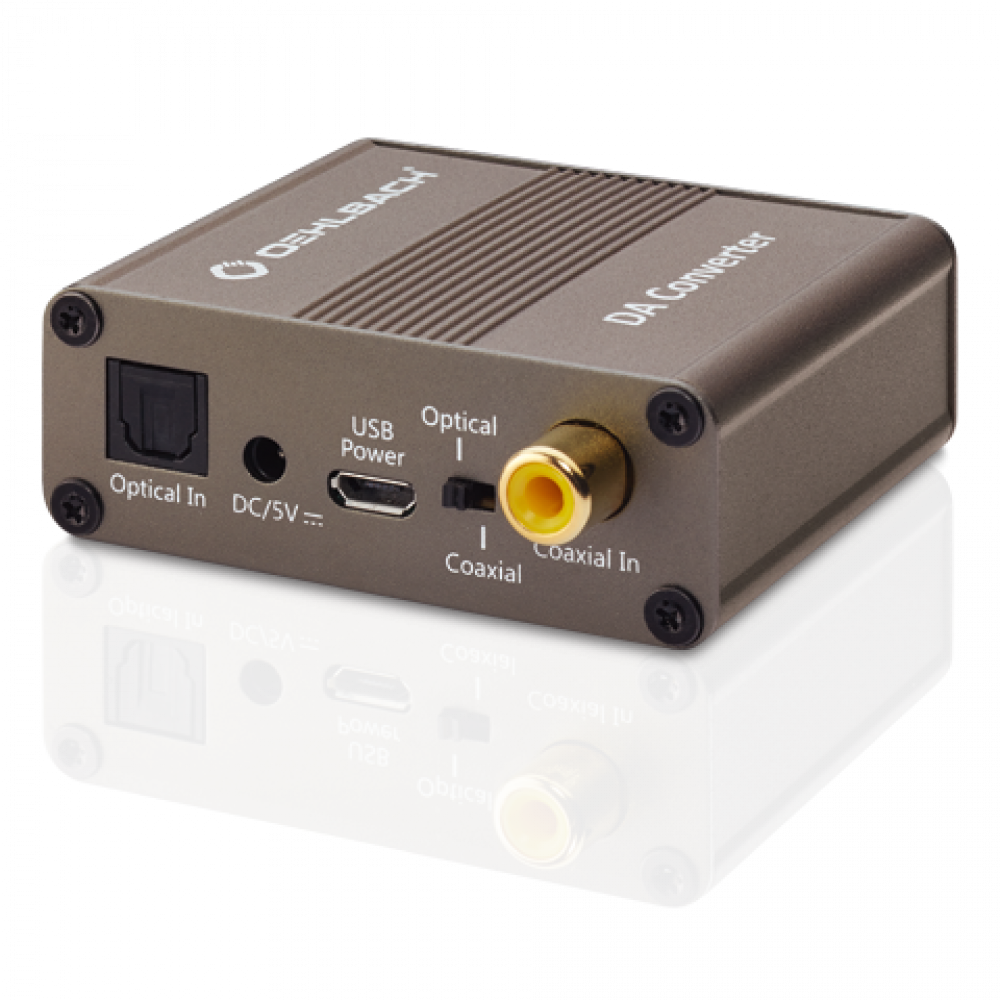

Oehlbach´s extra-class DA converter converts digital into analogue audio signals. High-resolution encoded signals are received through a coaxial or optical input. The desired input may be set with a switch and the signals will then be output through a two-channel RCA output. A high-quality Cirrus-Logic chip inside the device is responsible for loss-free digital-to-analogue conversion. The handy DA converter is suitable for PCM-format audio sources and supports audio signals up to 192 kHz/24 bit. A USB connector or mains adapter may be used as the power supply.


Automatic scanning-rate recognition
Up to 192 kHz and 24-bit audio support
Almost jitter-free timing recovery
Digital optical and coaxial input
Analogue output via stereo cinch and 3.5 jack
Very handy and compact design
Power supplied via 5V/USB

Technical Data
Resolution up to 24 bit
Supported sampling rates 32kHz/44.1kHz/48kHz/96kHz/192kHz
Permissible relative humidity: 5% to 90%
Temperature range: -15 to + 45 °C
Power supply Power supply: 5V/1A DC
Dimensions 63 x 23 x 68 mm

Digi Bridge
