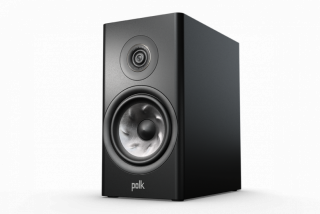

Polk Audio Reserve R100
Polk Reserve R100 hos Lefflers Ljud & Bildupplevelser i Norrköping
Sleek and Elegant design
More compact than R200
Flagship Transducer Array
CABINETS BUILT FOR BETTER PERFORMANCE
Polk believes cabinets should be beautiful and add nothing to the playback. Polk Reserve cabinets, braces, and internal enclosures are carefully engineered to minimize unwanted internal standing waves and eliminate unwanted resonances. The result is a cabinet that rigidly holds the transducer array while it faithfully reproduces recordings.
FLAGSHIP HI-RES RING RADIATOR TWEETER
Over 40 years of tweeter innovation, design and prototyping has led to the development of the new 1” high definition Pinnacle ring radiator tweeter. Developed by Polk Audio, it delivers ultra-clear, crisp highs without unwanted coloration or distortions. The Pinnacle tweeter features a finely tuned waveguide that dramatically improves the dispersion of high frequency energy ensuring a broad “sweet spot” while the critically damped rear-chamber helps defeat any unwanted resonances. Hi-Res certified, the Pinnacle Tweeter is designed for today’s two-channel music listening as well as multi-channel 3D audio found in movies, sports, and video game soundtracks.
SPECIFICATIONS
Specification
Speaker Type
Standmount (Bookshelf)
UOM (Sold As)
Pair
TRANSDUCER
Tweeter
1" Pinnacle Ring Radiator
Mid-range/Mid-bass
-
Woofers
5 ¼” Turbine Cone
Overall Frequency Response
44Hz - 50kHz
Frequency Response (-3dB limits)
58Hz - 39kHz
Recommended Amplifier Power
30 - 150W
Amplifier Output Compatibility
8Ω / 6Ω / 4Ω
Minimum Impedance (ohms)
3.6Ω
Sensitivity (2.83V/1m)
86dB
CROSSOVER
Tweeter/Mid-range Crossover Frequency
2700
Mid-range/Mid-bass Crossover Frequency
-
MEASUREMENTS
Product Dims W x H x D (Includes width of feet)
166 x 324 x 259.5mm6.5 x 12.8 x 10.2 in
Product Weights (each)
12.2 lbs/5.5 kg
Shipping Weight
28.4 lbs/12.9 kg
CABINETRY
New CRC (Mid-Range Enclosure Type)
-
Mid-Bass / Woofer Enclosure Type
Rear X-Port
Available Finishes
Black / White
Feet
Rubber pads
Wall-Mountable (keyhole slots)
Yes
Binding Posts: Nickel-plated 5-Way
Single
Certifications (Non-Safety and Regulatory)
Hi-Res Certified
Yes
IMAX Certified
No
Shipping Dims (WxHxD)
478 x 348 x 422mm
