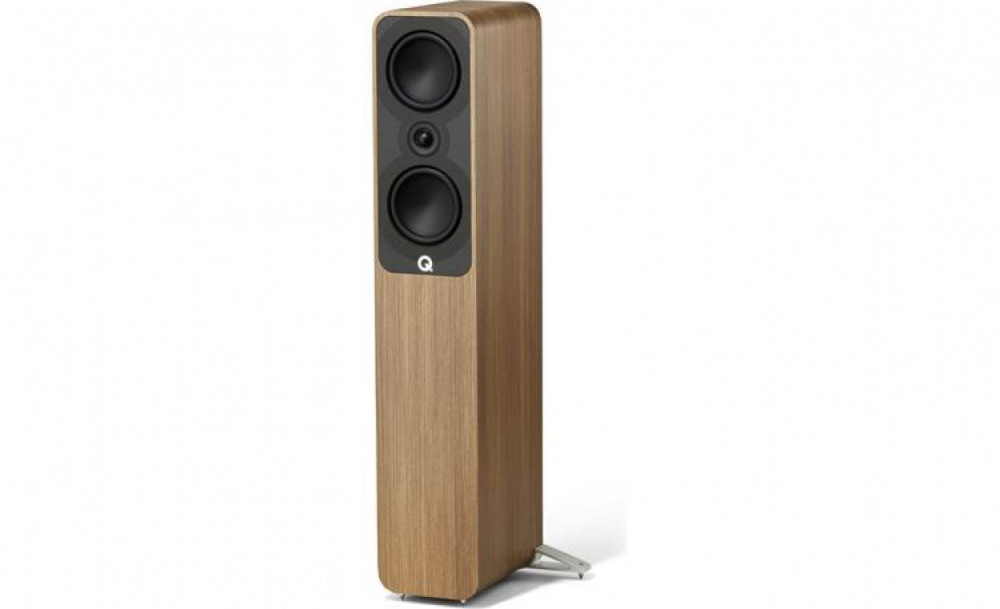

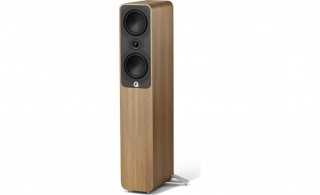

Q Acoustics 5040
Nu lanserar QAcoustics den helt nya 5000-serien.
Här har man tagit design och teknikinspiration från Concept serien men med en helt ny elementkonstruktion som heter C3 Continuous Curved Cone
Den nya 5000 serien från Q Acoustics omdefinierar hur en högtalare kan låta och se ut. Visa genuina framsteg inom elementdesign introduktionen av C3Continuous Curved ConeTM profil imid/bas driver höjer 5000-serien bortom sin klass och kommer att utgöra en teknisk plattform för framtiden. Serien ärver även innovativa kabinetter och högtalarelement från företagets flaggskeppskonceptintervall för en exceptionell ljudprestanda. Det 5000serien ger välljud till alla lyssningsrum med sina moderna och minimalistiska designlinjer .Placerad mellan de flera prisbelönta 3000i-serien och Concept-serien, 5000-familjenbestår av 5010 bokhylla, 5020 stativ,5040 golvmodell, 5050 stor golvmodell, med 5090 center-kanal fullbordar line-upen för en högtalaruppställning för hemmabio.
5000 series audio innovations include: • C3
(pronounced ‘C-cubed’) Continuous Curved
ConeTM design in the mid/bass driver ensures
smoother high-frequency integration with the
tweeter and superior bass dynamics.
• Sophisticated, clean and contemporary design
with dark acrylic baffle motif mirrors the minimalist C3
Continuous Curved ConeTM profile.
• Arrives in four stylish finishes: Satin Black,Satin
White, Santos Rosewood and Holme Oak.
• With a design taken from the Concept series but
in a new housing, the high-frequency driver is fully
hermetically sealed and mechanically isolated
from the front baffle to protect from internal cabinet
pressure and resonances from the mid/bass driver.
• Ground-up mid/bass driver design delivers
increased power handling.
• Point-2-PointTM (P2P) internal bracing stiffens the
cabinet to minimise lower frequency vibrations, while
focusing stereo imaging and improving soundstage.
• Helmholtz Pressure Equalisers (HPETM) reduces
internal pressure and standing waves
(5040 and 5050 models only)
C 3 Continuous Curved ConeTM design
A genuine advancement in elements of mid/bass
driver design, the C 3 Continuous Curved ConeTM
profile is the result of extensive research and expert
engineering to combine the bass performance
benefits of a traditional straight conic cone with the
high/mid-range frequency control of a flared cone.
By creating a single, smooth, continuous curve profile,
the advantages are manifold. Firstly, its excellent
dispersion, alongside its well-controlled frequency
response, enables smoother integration with the
tweeter. Deep bass dynamics are also superior,
with this and tighter, damped low-end sound allowing
more flexibility in placement of speakers near the wall
boundaries of the listening room. Harmonic distortion
is also reduced, ensuring the 5000 series delivers a
sonic performance and wide soundstage that belies
its ranking.
The C 3 Continuous Curved ConeTM profile has
successfully addressed shortcomings in one of the
basic geometrical elements of drive unit design to
deliver the best characteristics of both straight and
flared cones.
Specifications
Bass unit2 x 125 mm (5.0 in)
Treble unit1 x 25 mm (1.0 in)
Frequency response(-6dB)39 Hz - 30 kHz
Nominal impedance6 Ω
Minimum impedance3.0 Ω
Sensitivity (2.83V @ 1kHz)91.5 dB/w/m
Recommended amplifier power25-150 W
Crossover frequency2.5 kHzz
Effective volume27 L
Dimensions (per loudspeaker / HxWxD)Inc spikes and stabiliser: 967 x 361 x 293 mm (38.1 x 14.2 x 11.5 in)
Weight (per loudspeaker)18.0 kg (39.7 lbs)
