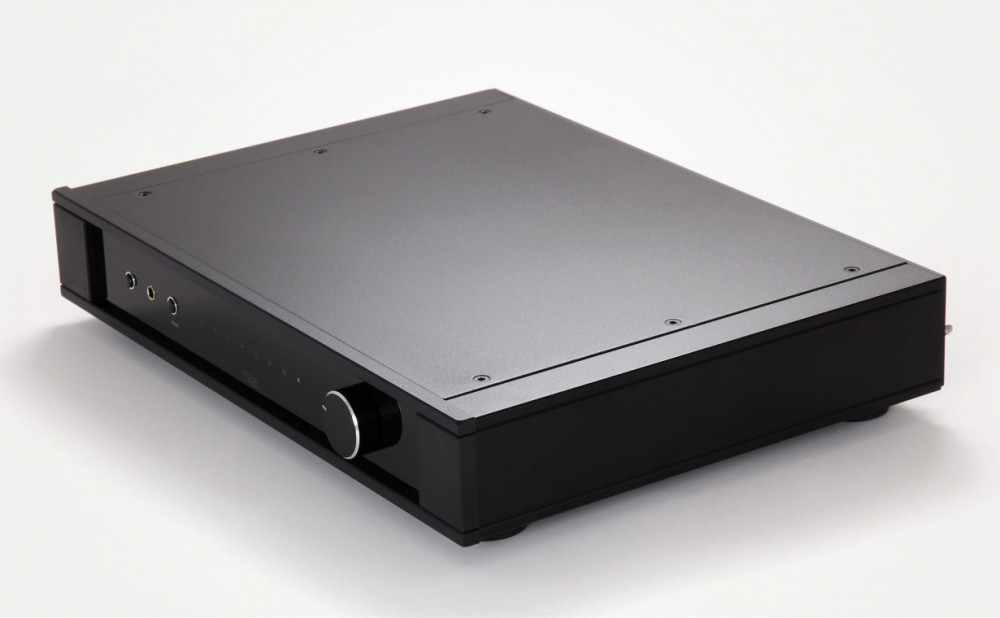

Rega Elex MK4
Elex MK4 är en högpresterande integrerad förstärkare designad för att leverera den renaste musikaliska prestanda. Inrymd i ett helt ny design för att matcha resten av Rega-serien, bygger MK4 på tidigare Rega-designer med vår flerfaldigt prisbelönta klass A/B effektförstärkarkrets som levererar imponerande 72W per kanal i 8Ω-belastningar (90W till 6Ω) . Nya anslutningsalternativ på baksidan är tillgängliga med Elex MK4 nu inklusive en Rega DAC-krets med två digitala ingångar och en högkvalitativ hörlursutgång bekvämt placerad på frontpanelen.
KEY FEATURES
72 W per channel into 8 Ω / 90 W into 6 Ω
High quality moving magnet phono stage
High performance Rega DAC circuit for digital inputs
2 x Digital inputs - 1 x optical and 1 x Co-Axial
Headphone output
4 Line level inputs
New custom design case
Thermal Cut-Out
Bringing your music to life
The Elex MK4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options. In addition to the line level, digital inputs and a high quality moving magnet phono stage, you will also find Pre-out and Record Out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.
TECHNICAL SPECIFICATIONS
Power Amplifier Output (at rated 230/115 V Supply voltage)72 W into 8 Ω90 W into 6 Ω
Dimensions (W × H × D)432 x 82 x 340 (D includes loudspeaker terminals)
Weight11 Kg
Supported Sampling Rates32, 44.1, 48, 88.2, 96, 176.4, 192kHz
Supported Bit Depths16 to 24 bit
Power Consumption250 W at 1dB below clip into 8Ω
Output Sensitivity (at rated inputs)Record Output 164mVPre-amplifier Output 625mV
