REL No. 31
Innehållet kan inte visas
Alla tillbehör
12" framåtriktat element. Sluten lådkonstruktion. 900watt klass D förstärkare. Pianosvart
Alla inställningar justerbara via fjärrkontroll. Hög och låg-nivå ingång med separata volymer.
17Hz -6dB. 10m högnivåkabel inkluderat.

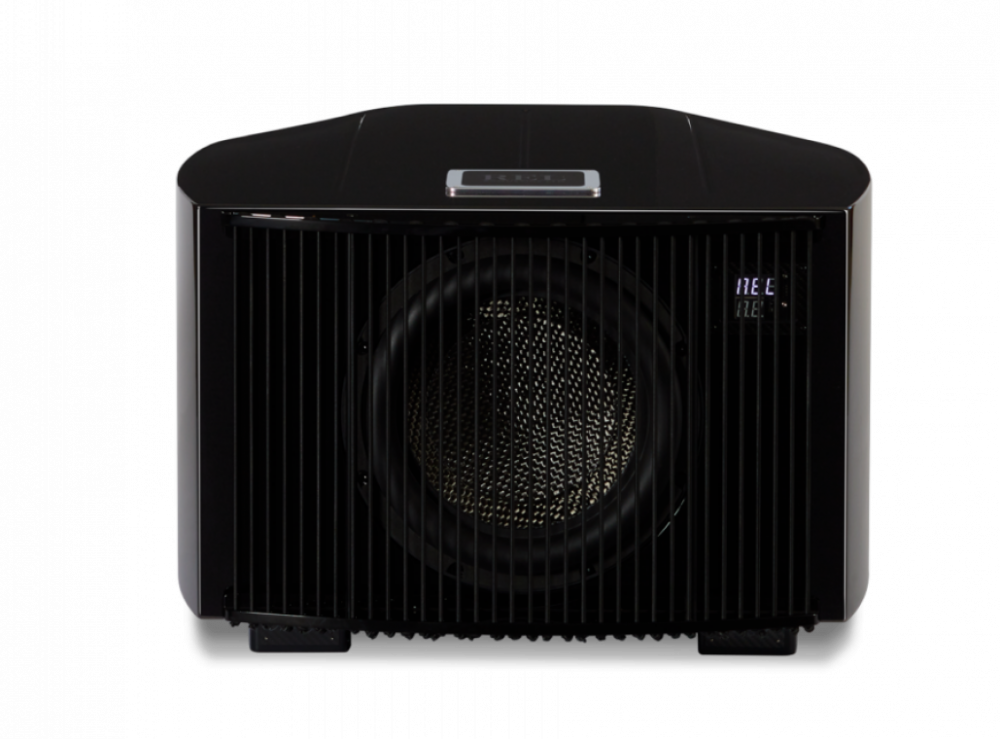

No.31 is nothing less than a pure reference model, sculpted from the flanks of the remarkable No.32, but using a newly developed 12″ (350mm) all carbon fiber driver. Every facet of No.31 has been comprehensively upgraded and refined from its predecessor. No.31 delivers the classic Reference filter used in No.32, the same dual parametric filters, a driver that handles three times the power to deliver a truly thrilling experience.
Perfection Repeated
No.31 matches No.32’s design stroke for stroke, yet somehow it manages to look more svelte, crouching closer to the floor—almost feline in its grace. The elegant plated handles inset into an ellipse is retained, as is the string grille that permits vast amounts of air to explode into your room without creating noise like cloth grilles can. No.31 features the curvilinear radius to the sidewalls that define both its performance and its character. But the reduction in visual and actual three-dimensional physical mass is remarkable. No.31: when the best must be delivered in a smaller space.
Total Control
Take control of your No.31 by grasping the REL Reference Remote Control. Immediately, you will be struck by the perfect fit in your palm, the result of careful thought and numerous generations of trial-and-error fittings during prototype development. The second reaction to it is the awareness of its mass, which conveys its quality, permanence, and immutability. It tells you, “I am a thing of substance, of quality. Pay attention, what you do next matters.” If you have owned a REL in the past (and fully 90% of Rel Reference owners are), all the familiar controls are right at hand, exactly where you’d want them. High (or low if using active speakers) level gain sits comfortably to the right side, the crossover rests in the middle, and .1/LFE gain is off to the left.
Below are three lovely metal toggle switches handle the critical setup functions. The remote’s on/off switch is at the bottom. It is both as out of the way as possible and remains on once turned on and in use during setup without being accidentally turned off. In the middle sits the phase control. This is used only initially to determine the correct 0 or 180 degrees of phase. Additionally, the top access to the Dual Parametric EQ-marked with A and B—permits the flattest, deepest bass and, at the other end of the bass frequencies, the fine-tuning of crossover behavior. This gives you the perfect blending of subwoofer to main speakers and any vestiges of room-generated boom and resonance can be gently trimmed away.
REL’s Reference Remote reminds you of the perfect butler—always immaculate, indispensable when called upon, then quietly set aside until a future time when perhaps additions or further improvements to one’s system further require its services.
Arrayed for Battle
No.31 permits the same vertically stacked line array as the ultimate No.32. It delivers transformative performance that no competitor has been able to. For those who have been seeking the ultimate musical and theatre experience, Line Arrays unlock the final dimension of system reproduction. Audiophiles have chased three-dimensional sound for years, yet they have missed the simple fact that the height—not the depth—of image is the missing link. By creating products that are designed to be stacked 3 (or in exceptionally tall rooms, 5) units high while retaining individual crossover and gain control of each subwoofer in the array, REL has created a masterpiece that finally delivers what the most experienced audiophiles have been chasing for the past 40 years.
Specifications
TYPE
Closed box, front-firing driver
ACTIVE DRIVER SIZE & MATERIAL
12 in. (300mm), 2.5 in. (96.5mm) long throw, carbon fibre cone with inverted carbon fibre center cap
PASSIVE RADIATOR SIZE & MATERIAL
N/A
LOW FREQUENCY EXTENSION
17Hz at -6 dB
INPUT CONNECTORS
High Level Neutrik Speakon, Low Level stereo RCA and XLR, LFE RCA, LFE XLR
OUTPUT CONNECTORS
High Level Neutrik Speakon, LFE XLR, Line XLR
POWER OUTPUT
900 watts (RMS)
AMPLIFIER TYPE
Class D
WIRELESS CAPABILITY
Yes - REL Airship II system [required] sold separately
DUAL PARAMETRIC FILTER
Yes
Protection System
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
7 Amp semi delay 230 volts operation, 15 Amp semi delay 115 volts operation
Dimensions
W X H X D
25 1/8 x 17 x 28 1/2 in (638 x 435 x 720 mm)
NET WEIGHT
114.5 lbs (52kg), shipping weight - 156 lbs (71kg)
FINISH
Piano Black Lacquer, 12 coats
Supplied Accessories
MAINS LEAD
Yes
NEUTRIK SPEAKON
Yes (10 Meters Nominal)
INTERCONNECT
USERS MANUAL
Yes
Modell
No. 31Varumärke
