ROTEL Michi X5 Series 2

The Michi X5 Series 2 Integrated Amplifier is authoritative and precise, capable of delivering a speaker-taming 600 watts of Class AB output power. The X5’s linear power supply is built around two massive in-house manufactured, shielded, low-noise toroidal transformers. Equipped with an ESS SABRE 8-Channel Digital to Analog converter, this amplifier renders ultra-revealing music with breathtaking accuracy.
A wide array of inputs ensures support of your favorite music sources including Analog RCA and XLR Balanced, Moving Magnet or Moving Coil Phono, aptX™ HD Wireless Bluetooth, Coaxial and Optical. The PC-input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) with full MQA hardware decoding up to 24-bit 384kHz.
Whether you're a music lover, audiophile, professional sound engineer or all of the above, the Michi X5 Series 2 Integrated Amplifier has been passionately engineered for you. Meticulously manufactured to the highest standards of build quality, and featuring an understated, graceful industrial design, the Michi X5 Series 2 is sure to quickly become the centerpiece of your audio system.
Michi, expectations amplified.

DIMENSIONS (W × H × D)
485 x 195 x 452mm
FRONT PANEL HEIGHT
177 mm (7")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
850W
STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT 43.8kg

BTU RATING 2194 BTU/h

CONTINUOUS POWER OUTPUT
600W/Ch (4Ω)
350W/Ch (8Ω)
TOTAL HARMONIC DISTORTION (THD)
<0.009%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz (+0 dB, -0.6 dB)
Digital Inputs: 20Hz - 20kHz (0 ± 0.4 dB)
Phono Input: 20Hz - 20kHz (+0 dB, -0.2 dB)
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 102dB
Digital Inputs: 102dB
Phono Input: 80dB

The Michi X5 Integrated Amplifier is Performance Redefined
delivering an astounding 600 Watts of Class AB power into 4
ohm speakers under even extreme loading conditions. The
X5 is replete with inputs ensuring support of all popular audio
sources including Analog, Digital, XLR, PC-USB with MQA
rendering, apt-X Bluetooth, and selectable Moving Magnet or
Moving Coil Phono Stage.
The acoustic eminence of the X5 is achieved utilizing a
perfect balance of innovation and critical engineering of
every circuit, signal path and audio component ensuring the
exquisite industrial design is surpassed only by breathtaking
performance.
Musical expression of the X5 is evidenced by the exceptional
control of near limitless bass energy and essential clarity of
the midrange and high frequencies. The X5 delivers true-tolife audio reproduction ensuring meticulous accuracy of the
musical timing with exacting spatial positioning be it a solo
artist or full orchestral symphony.
The X5 oversized, in-house manufactured toroidal transformer
feeds 88,000uF of high efficiency bulk storage smoothing
capacitors with isolated power supply feeds to all acoustically
sensitive circuits eliminating unwanted noise or distortion further
refining the audio.

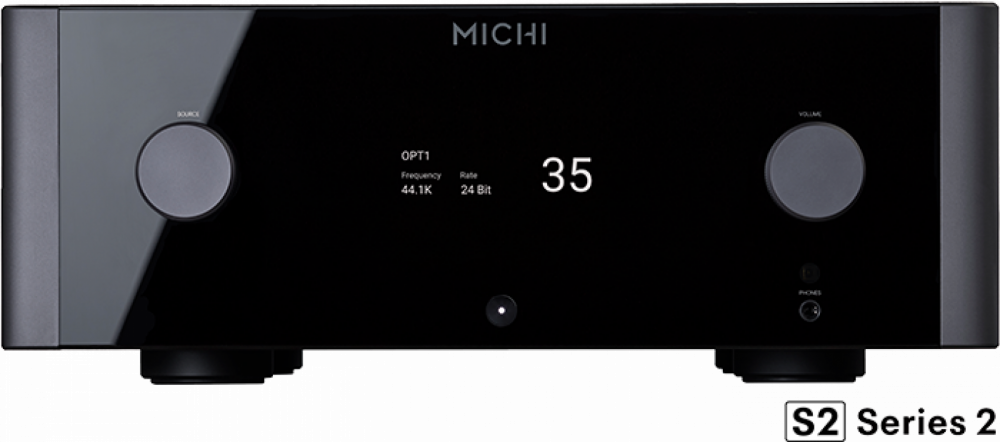

A front panel high-resolution graphic display is configurable to
show operating status, 12 band Graphic EQ or Peak Power Meter.
Front panel controls and included Michi remote control assure
easy operation and configuration.
Dual sets of Rhodium plated custom Michi speaker binding posts
allow effortless connection to loudspeakers including bi-wire
installations. RS232 and Ethernet connections allow simple
integration with control systems.
Welcome to Michi. Acoustic Elevation, Sonic Evolution, Visual
Perfection

Michi X5 Series 2
